Taegutec TERY 216-M08-08

Product Code: 3109636

$314.69$286.08 Ex. GST

Product Code: 3109636 SKU 3109636 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

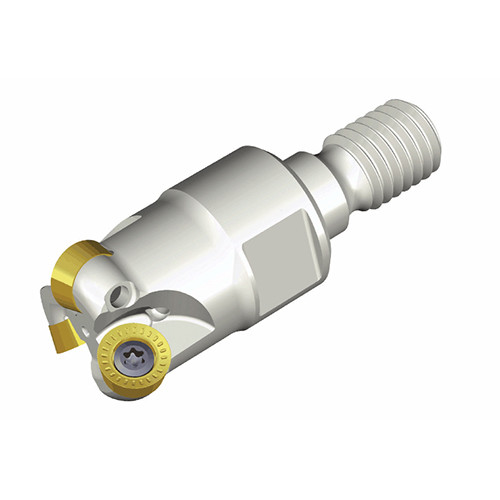

Modular end mills with T-FLEXTEC adaptation and strong positive round inserts of RYM(H)X for profiling

Additional information

Weight 0.0900 kg
Dimensions
barcode
Additional Information

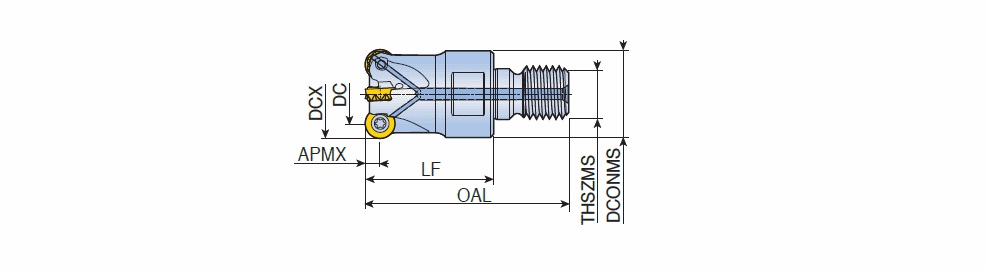

Cutting Diameter (DC/DCX): 16 mm
Master Insert Identification (MIID): RYMX 0803-ML
Cutting Diameter (DC): 16 mm
Head Length (LH): 23 mm
Cutting Item Count (CICT): 2
Connection Thread Nominal Size Machine Side (THSZMS): M08
Depth of Cut Maximum (APMX): 4 mm
Measurement Type: Metric
Overall Length (OAL): 40.5 mm
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
