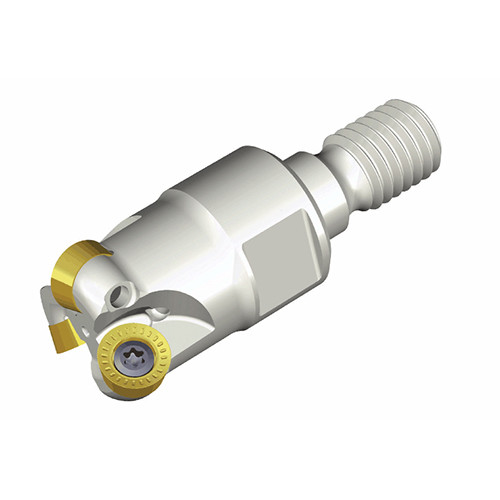

Taegutec TERY 218-M08-08

Product Code: 3112553

$275.85$250.77 Ex. GST

Product Code: 3112553 SKU 3112553 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Modular end mills with T-FLEXTEC adaptation and strong positive round inserts of RYM(H)X for profiling

Additional information

Weight 0.0910 kg
Dimensions
barcode
Additional Information

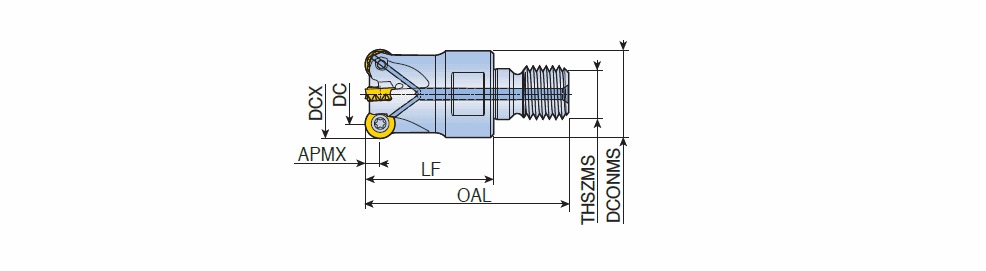

Cutting Diameter (DC/DCX): 18 mm
Master Insert Identification (MIID): RYMX 0803-ML
Cutting Diameter (DC): 18 mm
Head Length (LH): 23 mm
Cutting Item Count (CICT): 2
Connection Thread Nominal Size Machine Side (THSZMS): M08
Depth of Cut Maximum (APMX): 4 mm
Measurement Type: Metric
Overall Length (OAL): 40.5 mm
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
