Taegutec TERY 225-W25-12

Product Code: 3108184

$354.67$322.43 Ex. GST

Product Code: 3108184 SKU 3108184 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

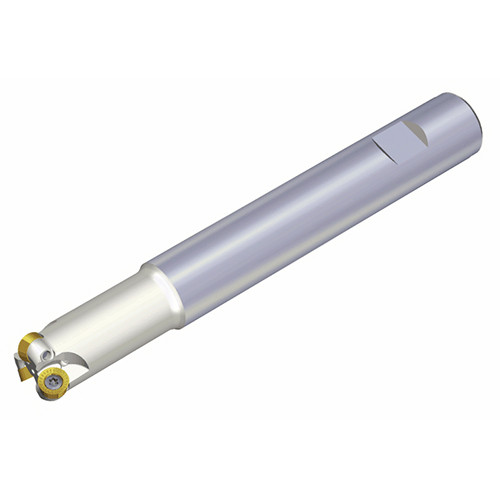

End mills with strong positive round inserts of RYM(H)X for general profiling

Additional information

Weight 0.6050 kg
Dimensions
barcode
Additional Information

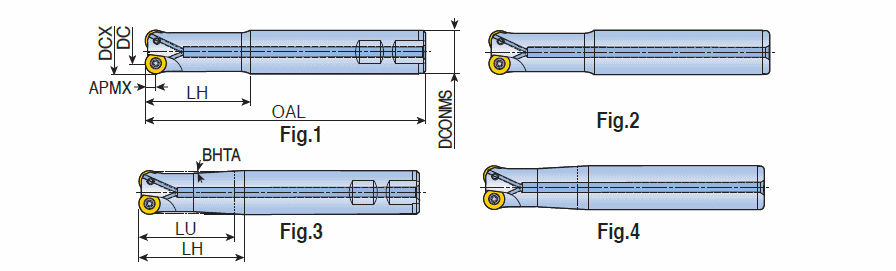

Cutting Diameter (DC/DCX): 25 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Cutting Diameter (DC): 25 mm
Master Insert Identification (MIID): RYMX 1205-M
Cutting Item Count (CICT): 2
Head Length (LH): 60 mm
Depth of Cut Maximum (APMX): 6 mm
Body Half Taper Angle (BHTA): Degrees
Overall Length (OAL): 160 mm
Measurement Type: Metric
Shank Type: Weldon
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
