Taegutec TERY 320-W20-08

Product Code: 3110280

$348.37$316.70 Ex. GST

Product Code: 3110280 SKU 3110280 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

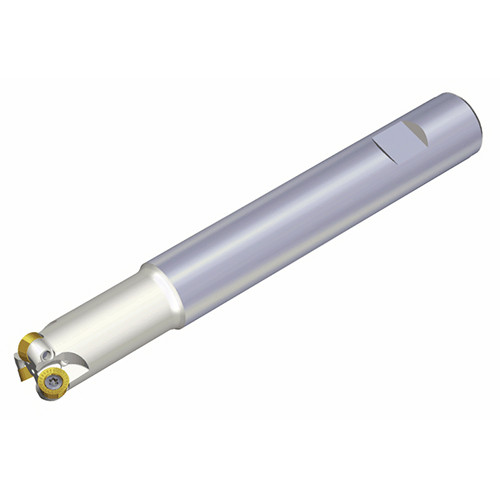

End mills with strong positive round inserts of RYM(H)X for general profiling

Additional information

Weight 0.3950 kg
Dimensions
barcode

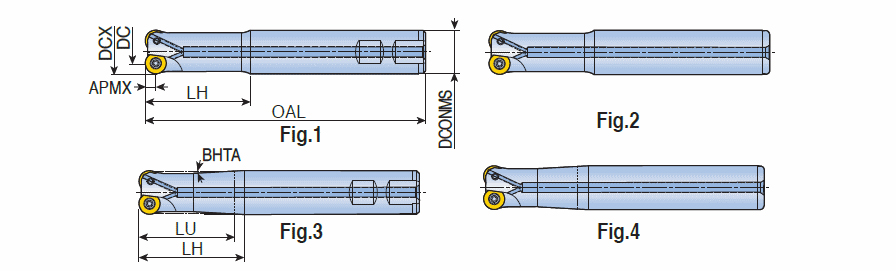

Additional Information

Cutting Diameter (DC/DCX): 20 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Cutting Diameter (DC): 20 mm
Master Insert Identification (MIID): RYMX 0803-ML
Cutting Item Count (CICT): 3
Head Length (LH): 43 mm
Depth of Cut Maximum (APMX): 4 mm
Body Half Taper Angle (BHTA): Degrees
Overall Length (OAL): 150 mm
Measurement Type: Metric
Shank Type: Weldon
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
