Taegutec TERY 332-M16-12

Product Code: 3106917

$417.89$379.90 Ex. GST

Product Code: 3106917 SKU 3106917 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

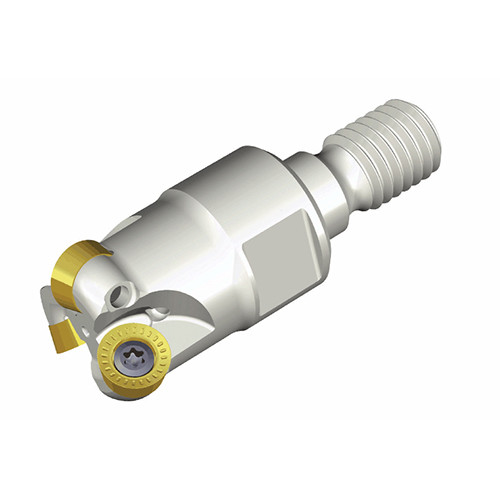

Modular end mills with T-FLEXTEC adaptation and strong positive round inserts of RYM(H)X for profiling

Additional information

Weight 0.3050 kg
Dimensions
barcode
Additional Information

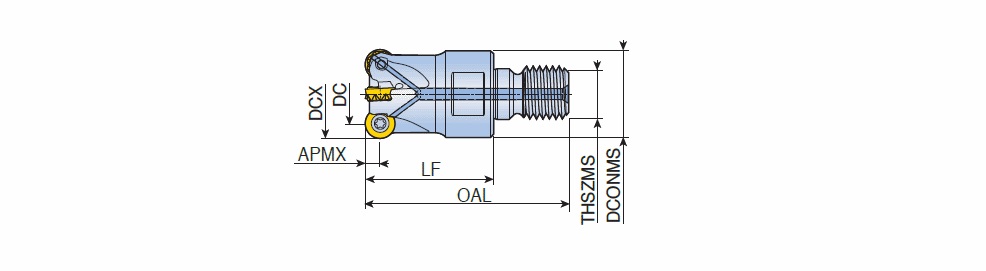

Cutting Diameter (DC/DCX): 32 mm
Master Insert Identification (MIID): RYMX 1205-M
Cutting Diameter (DC): 32 mm
Head Length (LH): 43 mm
Cutting Item Count (CICT): 3
Connection Thread Nominal Size Machine Side (THSZMS): M16
Depth of Cut Maximum (APMX): 6 mm
Measurement Type: Metric
Overall Length (OAL): 68 mm
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
