Taegutec TERY 642-M16-10

Product Code: 3112555

$622.20$565.64 Ex. GST

Product Code: 3112555 SKU 3112555 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

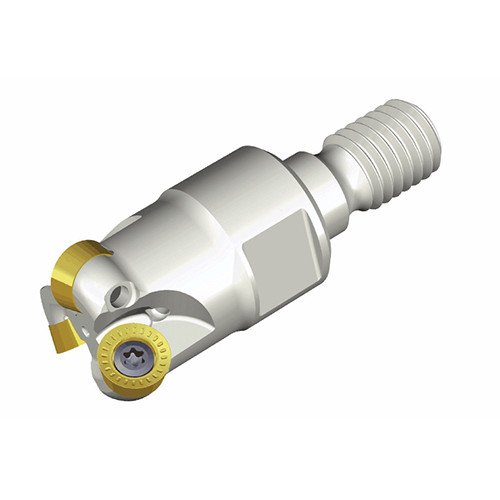

Modular end mills with T-FLEXTEC adaptation and strong positive round inserts of RYM(H)X for profiling

Additional information

Weight 0.3750 kg
Dimensions
barcode
Additional Information

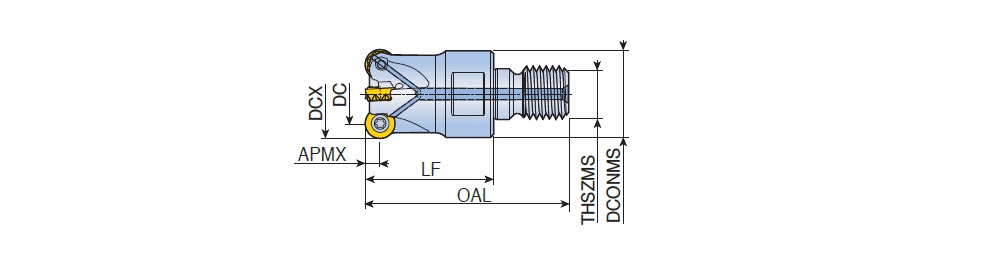

Cutting Diameter (DC/DCX): 42 mm
Master Insert Identification (MIID): RYMX 1004-ML
Cutting Diameter (DC): 42 mm
Head Length (LH): 43 mm
Cutting Item Count (CICT): 6
Connection Thread Nominal Size Machine Side (THSZMS): M16
Depth of Cut Maximum (APMX): 5 mm
Measurement Type: Metric
Overall Length (OAL): 68 mm
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
