Application:, Shouldering, Slotting, Number of Teeth: 30

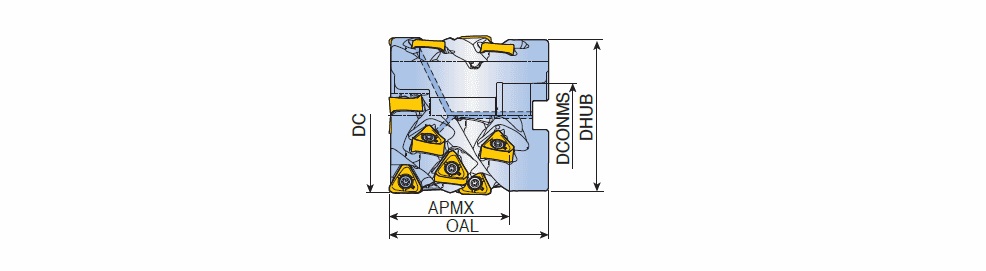

Depth of Cut Maximum (APMX): 71 mm
Master Insert Identification (MIID): TNMX 1806 PNTR-M
Cutting Diameter (DC): 100 mm
Arbor Style: A
Connection Diameter Machine Side (DCONMS): 40 mm
Measurement Type: Metric
Flute Count (NOF): 5
Body Material: Steel
Overall Length (OAL): 100 mm
Unit: M
