Taegutec TES D100-88-40-AP17-6F

Product Code: 6134832

$4,741.46$4,310.42 Ex. GST

Product Code: 6134832 SKU 6134832 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

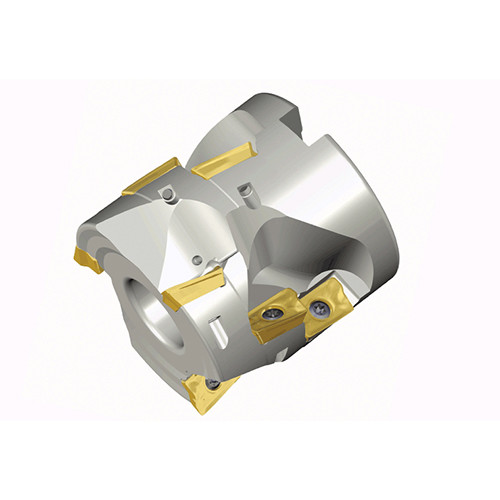

Taegutec TES D100-88-40-AP17-6F

Taegutec TES D100-88-40-AP17-6F - Image 2

Taegutec TES D100-88-40-AP17-6F - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute shell mills with helical two cutting edges inserts of AP.. 17

Additional information

Weight	4.6500 kg
Dimensions
barcode

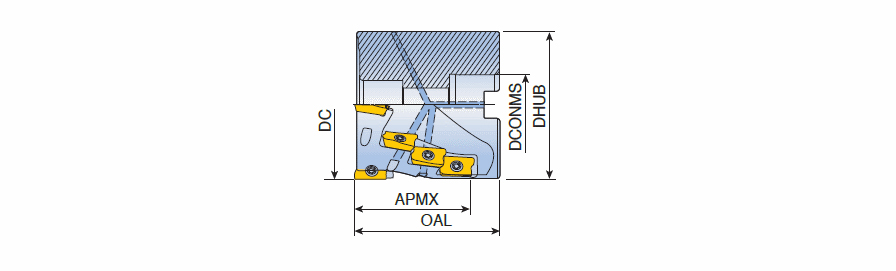

Additional Information	Application:, Shouldering, Slotting, Trochoidal Milling, Number of Teeth: 36 Depth of Cut Maximum (APMX): 88 mm Master Insert Identification (MIID): APKT 1705 PER-EM Cutting Diameter (DC): 100 mm Arbor Style: A Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Flute Count (NOF): 6 Body Material: Steel Overall Length (OAL): 110 mm Unit: M

Brand

Taegutec
