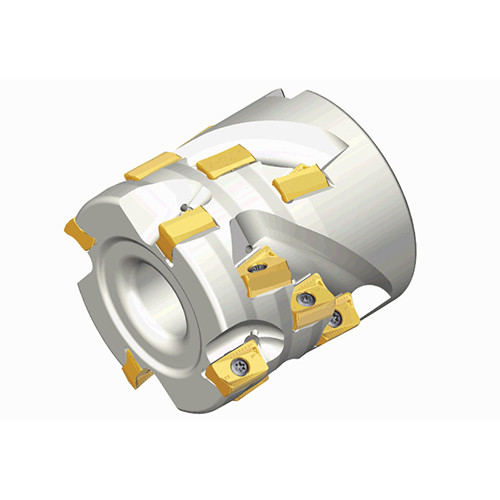

Extended flute shell mills with 4 helical cutting edges of double-sided inserts AN 11
Additional information
Weight
1.6450 kg
Dimensions
barcode
Additional Information
Application:, Shouldering, Slotting, Number of Teeth: 9
Depth of Cut Maximum (APMX): 42 mm
Master Insert Identification (MIID): ANHX 160708R-M
Cutting Diameter (DC): 63 mm
Arbor Style: A
Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Flute Count (NOF): 3
Body Material: Steel
Overall Length (OAL): 70 mm
Unit: M
