Taegutec TES D63-44-27-AP17

Product Code: 3103206

$1,522.08$1,383.71 Ex. GST

Product Code: 3103206 SKU 3103206 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

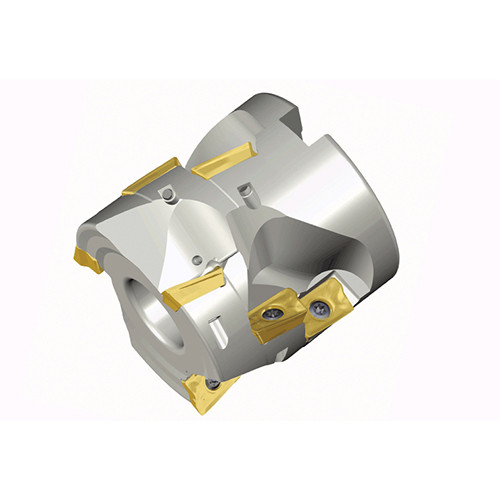

Taegutec TES D63-44-27-AP17

Taegutec TES D63-44-27-AP17 - Image 2

Taegutec TES D63-44-27-AP17 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute shell mills with helical two cutting edges inserts of AP.. 17

Additional information

Weight	1.4400 kg
Dimensions
barcode

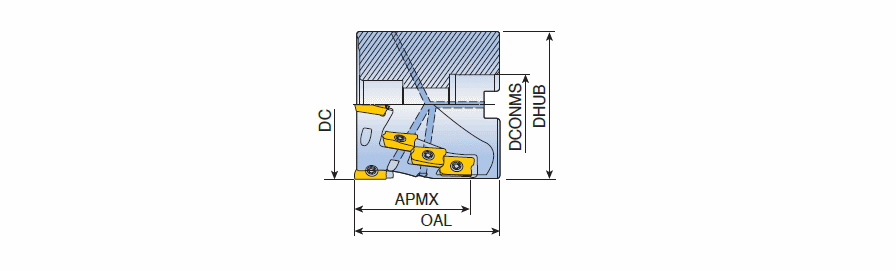

Additional Information	Application:, Shouldering, Slotting, Trochoidal Milling, Number of Teeth: 9 Depth of Cut Maximum (APMX): 44 mm Master Insert Identification (MIID): APKT 1705 PER-EM Cutting Diameter (DC): 63 mm Arbor Style: A Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Flute Count (NOF): 3 Body Material: Steel Overall Length (OAL): 63 mm Unit: M

Brand

Taegutec
