Taegutec TES D63-56-27R-AP12-4F

Product Code: 6134834

$2,046.26$1,860.24 Ex. GST

Product Code: 6134834 SKU 6134834 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

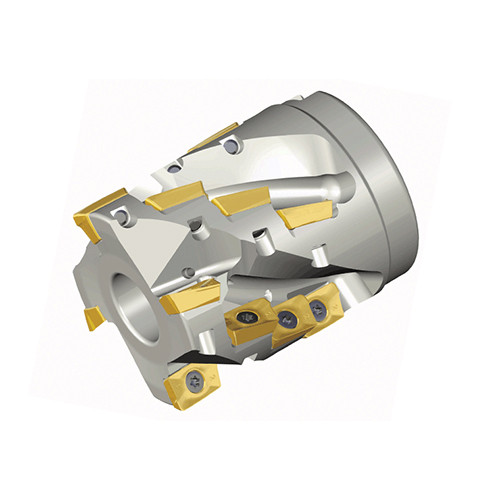

Taegutec TES D63-56-27R-AP12-4F

Taegutec TES D63-56-27R-AP12-4F - Image 2

Taegutec TES D63-56-27R-AP12-4F - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extended flute shell mills with helical two cutting edges inserts of APKT 12

Additional information

Weight	1.6300 kg
Dimensions
barcode

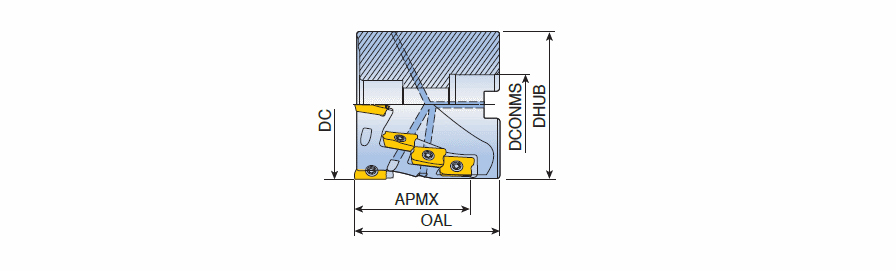

Additional Information	Application:, Shouldering, Slotting, Trochoidal Milling, Number of Teeth: 20 Depth of Cut Maximum (APMX): 56 mm Master Insert Identification (MIID): APKT 1204 PER-EM Cutting Diameter (DC): 63 mm Arbor Style: A Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Flute Count (NOF): 4 Body Material: Steel Overall Length (OAL): 75 mm Unit: M

Brand

Taegutec
