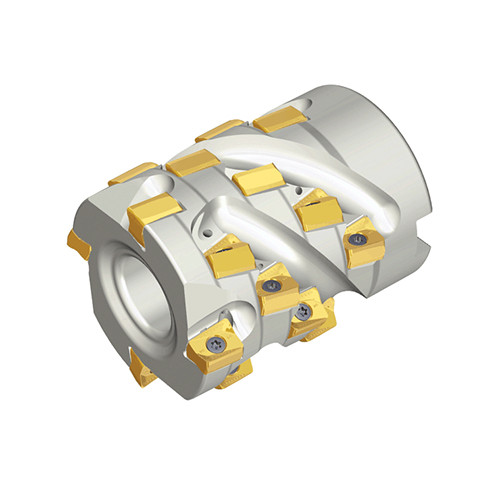

Extended flute shell mills with 4 helical cutting edges of double-sided inserts AN 11
Additional information
Weight
1.7250 kg
Dimensions
barcode
Additional Information

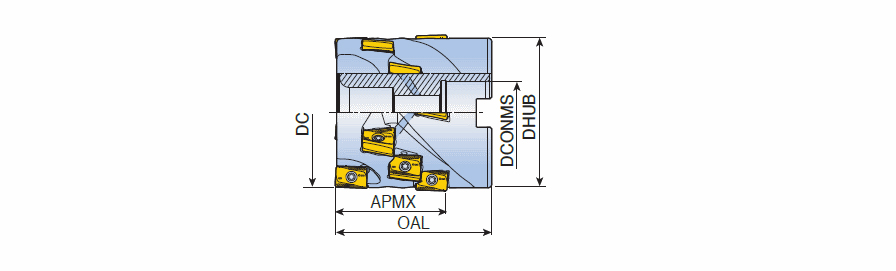

Application:, Shouldering, Slotting, Number of Teeth: 24
Depth of Cut Maximum (APMX): 60 mm
Master Insert Identification (MIID): ANHX 110608R-M
Cutting Diameter (DC): 63 mm
Arbor Style: A
Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Flute Count (NOF): 4
Body Material: Steel
Overall Length (OAL): 80 mm
Unit: M
