Taegutec TES D80-47-32-14

Product Code: 3101412

$2,412.88$2,193.53 Ex. GST

Product Code: 3101412 SKU 3101412 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec TES D80-47-32-14

Taegutec TES D80-47-32-14 - Image 2

Taegutec TES D80-47-32-14 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

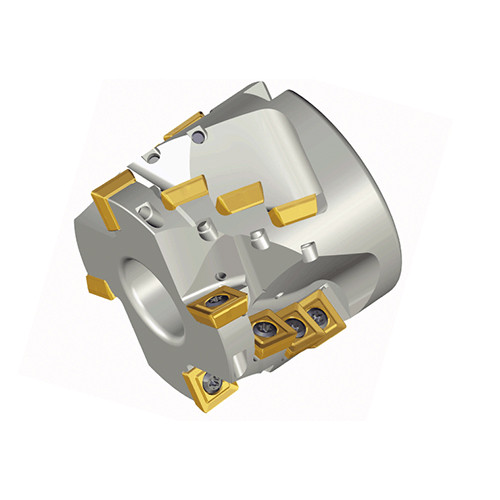

Extended flute shell mill with positive SPMT or SPMG 11/14 inserts of 4 cutting edges in full effectiveness

Additional information

Weight	1.9750 kg
Dimensions
barcode

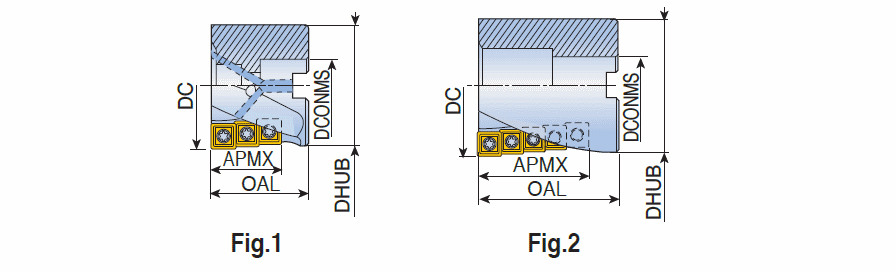

Additional Information	Application:, Shouldering, Slotting, Number of Teeth: 16 Depth of Cut Maximum (APMX): 47 mm Master Insert Identification (MIID): SPMT 140508-EM Cutting Diameter (DC): 80 mm Arbor Style: A Connection Diameter Machine Side (DCONMS): 32 mm Measurement Type: Metric Flute Count (NOF): 4 Body Material: Steel Overall Length (OAL): 65 mm Unit: M

Brand

Taegutec
