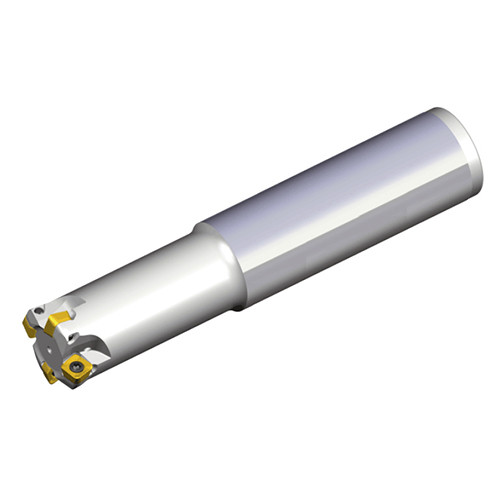

High feed end mills with positive SBMT 06 inserts of four cutting edges in max. ap 1.0 mm
Additional information
Weight
0.3000 kg
Dimensions
barcode
Additional Information

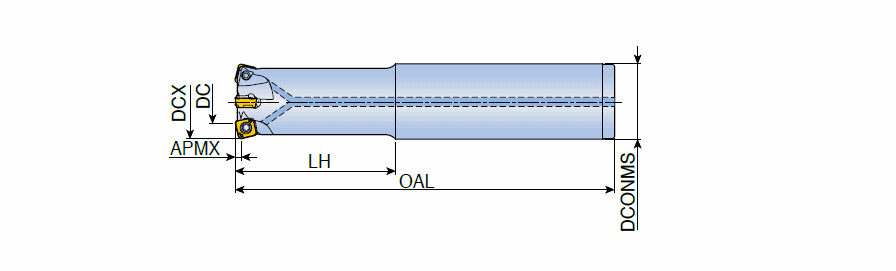

Cutting Diameter (DC/DCX): 16 mm
Connection Diameter Machine Side (DCONMS): 16 mm
Cutting Diameter (DC): 5.9 mm
Master Insert Identification (MIID): SBMT 060310R-M
Cutting Item Count (CICT): 2
Head Length (LH): 40 mm
Depth of Cut Maximum (APMX): 1 mm
Measurement Type: Metric
Overall Length (OAL): 150 mm
Body Material: Steel
Shank Type: Round
Cutting Diameter Maximum (DCX): 16 mm

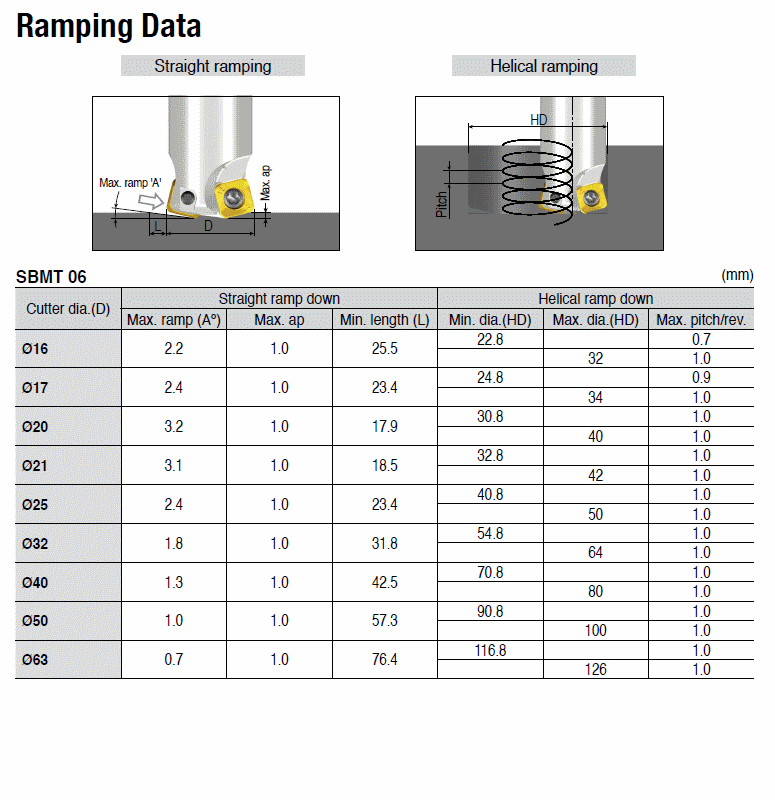

Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
