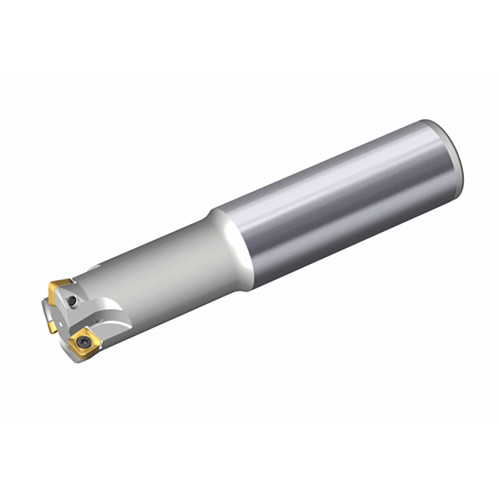

High feed end mills with positive SBMT 09 inserts of four cutting edges in max. ap 1.2 mm
Additional information
Weight
1.8100 kg
Dimensions
barcode
Additional Information

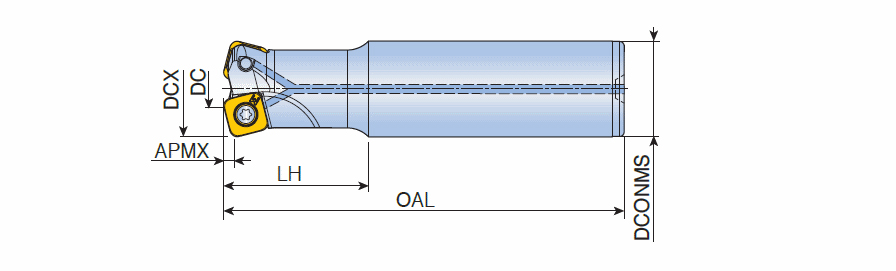

Cutting Diameter (DC/DCX): 32 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 32 mm
Master Insert Identification (MIID): SBMT 090415R-M
Cutting Item Count (CICT): 3
Head Length (LH): 70 mm
Depth of Cut Maximum (APMX): 1.2 mm
Measurement Type: Metric
Overall Length (OAL): 300 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown
