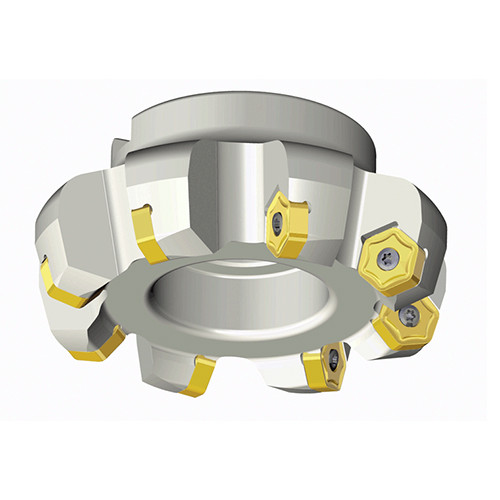

High feed face mills with 12 cutting edges of double-sided HN 10 inserts for facing only
Additional information
Weight
1.6700 kg
Dimensions
barcode
Additional Information

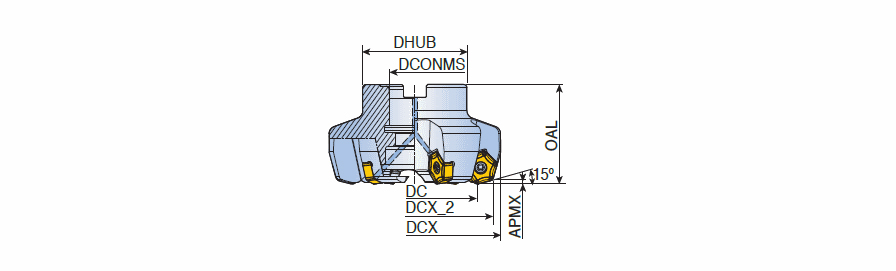

Cutting Diameter (DC): 80 mm
Master Insert Identification (MIID): HNHX 1006ANTN-M
Cutting Item Count (CICT): 5
Body Material: Steel
Depth of Cut Maximum (APMX): 2 mm
Application:, Facing, High Feed Milling, Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Overall Length (OAL): 55 mm
Unit: M
