Taegutec TFM43OFS 550-22R-05

Product Code: 3101235

$841.69$765.17 Ex. GST

Product Code: 3101235 SKU 3101235 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

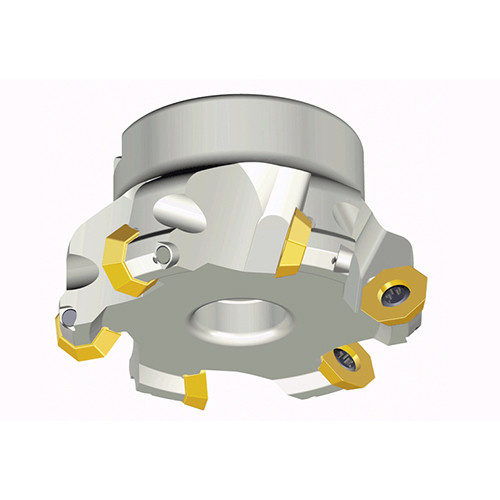

43° Face mills with high positive octagon inserts & simple screw clamping for general milling

Additional information

Weight 0.9100 kg
Dimensions
barcode
Additional Information

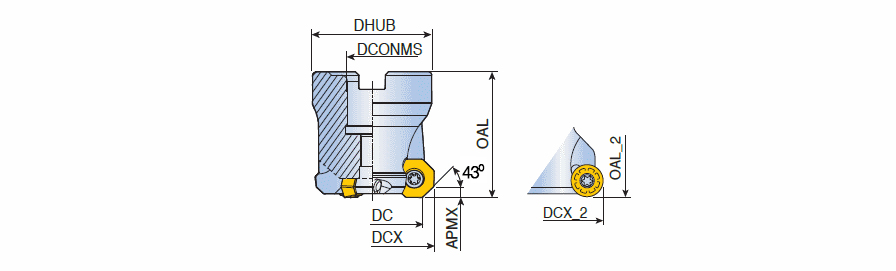

Cutting Diameter (DC): 59 mm
Master Insert Identification (MIID): OFCT 05T3 TN-EM
Cutting Item Count (CICT): 5
Body Material: Steel
Depth of Cut Maximum (APMX): 3.5 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 22 mm
Measurement Type: Metric
Overall Length (OAL): 40.6 mm
Unit: M

Brand

Taegutec
