Taegutec TFM43OFS 9125-38.1R-05

Product Code: 6162186

$1,727.43$1,570.39 Ex. GST

Product Code: 6162186 SKU 6162186 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

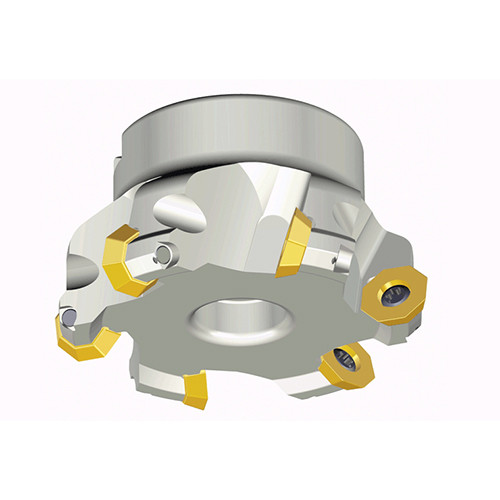

43° Face mills with high positive octagon inserts & simple screw clamping for general milling

Additional information

Weight 3.3200 kg
Dimensions
barcode
Additional Information

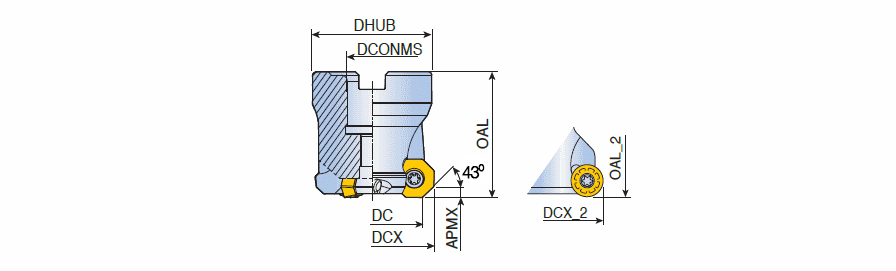

Cutting Diameter (DC): 134 mm
Master Insert Identification (MIID): OFCT 05T3 TN-EM
Cutting Item Count (CICT): 9
Body Material: Steel
Depth of Cut Maximum (APMX): 3.5 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 38.1 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
