Taegutec TFM45HNS 12160-40R-10

Product Code: 3106205

$2,489.17$2,262.88 Ex. GST

Product Code: 3106205 SKU 3106205 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

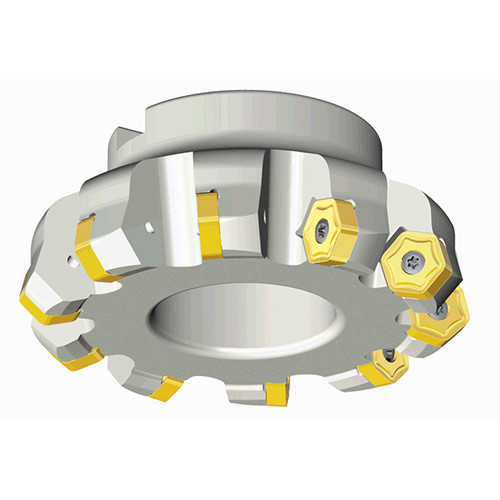

45° Face mills with double sided 12 cutting edges inserts HN 10 & screw clamping for general milling in max. depth of cut 6.35 mm

Weight	5.2400 kg
Dimensions
barcode

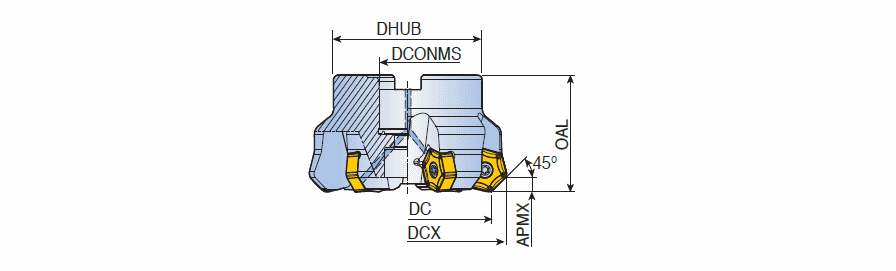

Additional Information	Cutting Diameter (DC): 174 mm Master Insert Identification (MIID): HNHX 1006ANTN-M Cutting Item Count (CICT): 12 Body Material: Steel Depth of Cut Maximum (APMX): 6.1 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
