Taegutec TFM45HNS 16200-60R-10F

Product Code: 6162379

$3,337.61$3,034.19 Ex. GST

Product Code: 6162379 SKU 6162379 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

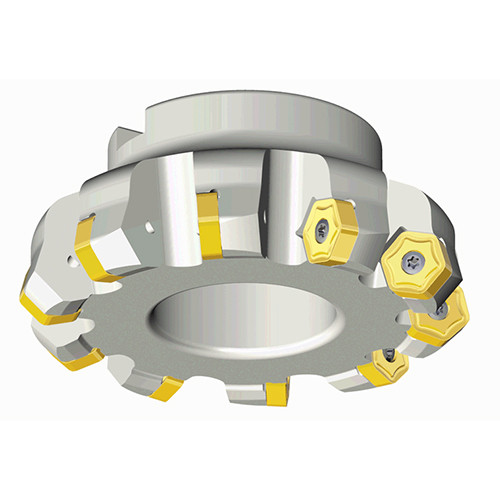

Taegutec TFM45HNS 16200-60R-10F

Taegutec TFM45HNS 16200-60R-10F - Image 2

Taegutec TFM45HNS 16200-60R-10F - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

45° Face mills with double sided 12 cutting edges inserts HN 10 & screw clamping for general milling in max. depth of cut 6.35 mm

Additional information

Weight	8.1400 kg
Dimensions
barcode

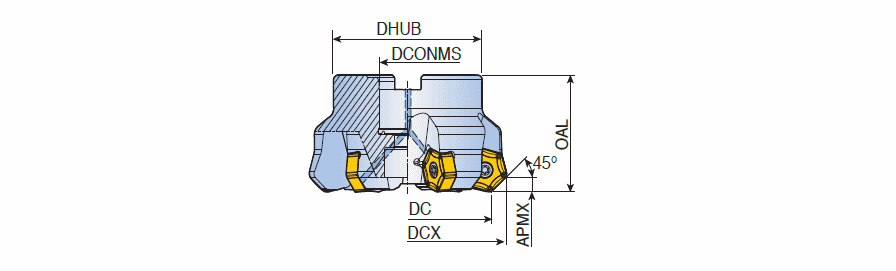

Additional Information	Cutting Diameter (DC): 214 mm Master Insert Identification (MIID): HNHX 1006ANTN-M Cutting Item Count (CICT): 16 Body Material: Steel Depth of Cut Maximum (APMX): 6.1 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 60 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M

Brand

Taegutec
