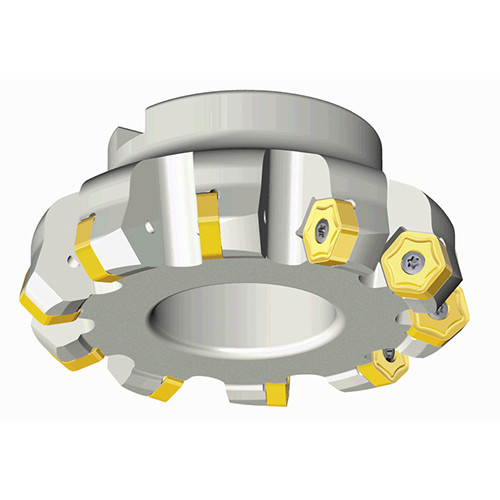

Taegutec TFM45HNS 9100-32R-10F

Product Code: 6162374

$1,577.60$1,434.18 Ex. GST

Product Code: 6162374 SKU 6162374 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

45° Face mills with double sided 12 cutting edges inserts HN 10 & screw clamping for general milling in max. depth of cut 6.35 mm

Weight	3.1750 kg
Dimensions
barcode

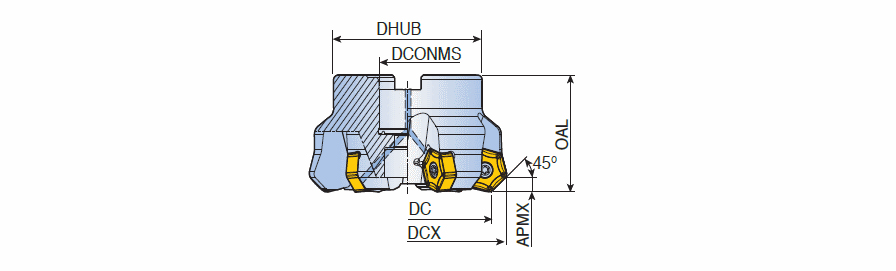

Additional Information	Cutting Diameter (DC): 114 mm Master Insert Identification (MIID): HNHX 1006ANTN-M Cutting Item Count (CICT): 9 Body Material: Steel Depth of Cut Maximum (APMX): 6.1 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 32 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
