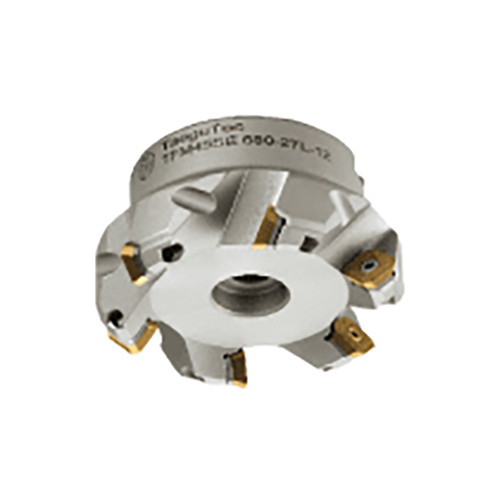

Taegutec TFM45SE 13250-60R-12

Product Code: 3101649

$2,885.15$2,622.86 Ex. GST

Product Code: 3101649 SKU 3101649 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

45° Face mills with positive 4 cutting edges of SEKT/HT 12 inserts

Additional information

Weight 12.2600 kg
Dimensions
barcode
Additional Information

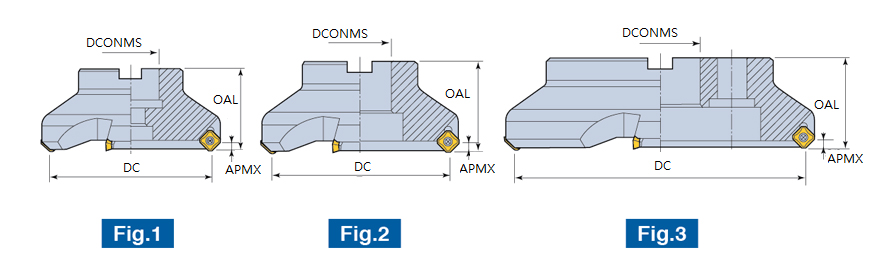

Cutting Diameter (DC): 250 mm
Master Insert Identification (MIID): SEKT 12T3 AFTN-M
Cutting Item Count (CICT): 13
Body Material: Steel
Depth of Cut Maximum (APMX): 6.7 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 60 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
