Taegutec TFM45SE 6100-32R-12

Product Code: 3101646

$1,108.91$1,008.10 Ex. GST

Product Code: 3101646 SKU 3101646 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

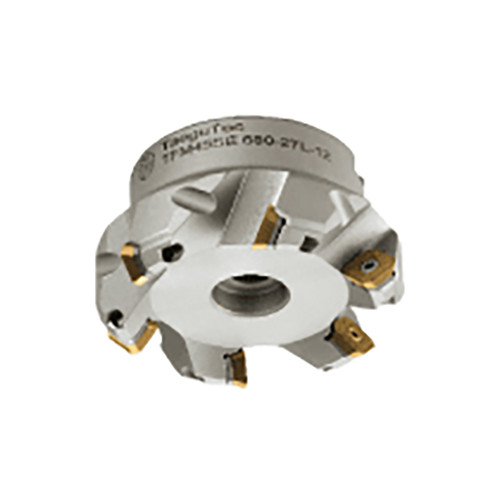

45° Face mills with positive 4 cutting edges of SEKT/HT 12 inserts

Additional information

Weight 2.5300 kg
Dimensions
barcode
Additional Information

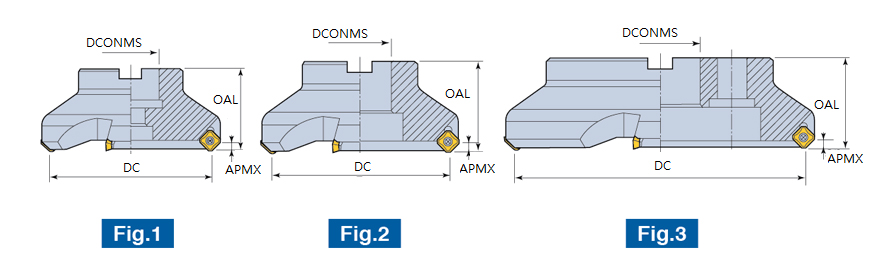

Cutting Diameter (DC): 100 mm
Master Insert Identification (MIID): SEKT 12T3 AFTN-M
Cutting Item Count (CICT): 6
Body Material: Steel
Depth of Cut Maximum (APMX): 6.7 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 32 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M
