Taegutec TFM45SN 10125-40R-13

Product Code: 3110355

$1,823.82$1,658.02 Ex. GST

Product Code: 3110355 SKU 3110355 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec TFM45SN 10125-40R-13

Taegutec TFM45SN 10125-40R-13 - Image 2

Taegutec TFM45SN 10125-40R-13 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

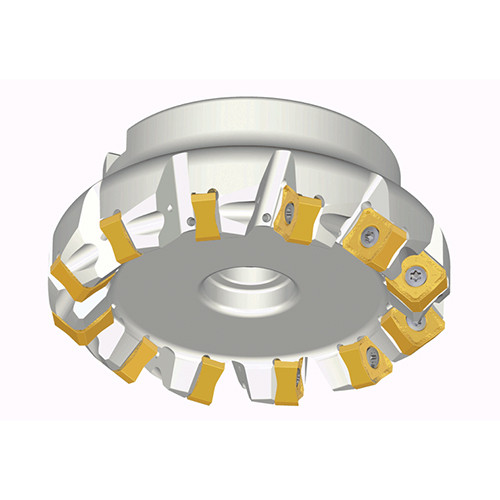

45° Face mills with 8 cutting edges of double-sided square inserts SN 13 for general milling

Additional information

Weight	4.5400 kg
Dimensions
barcode

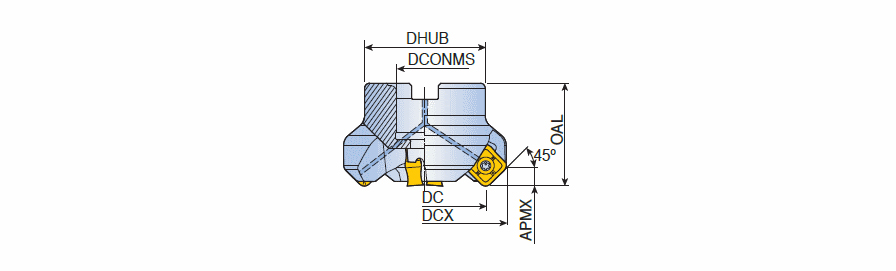

Additional Information	Cutting Diameter (DC): 139.8 mm Master Insert Identification (MIID): SNGX 1306 ANTN-M Cutting Item Count (CICT): 10 Body Material: Steel Depth of Cut Maximum (APMX): 7 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M

Brand

Taegutec
