Taegutec TFM45SN 10200-47.625R-13B

Product Code: 3112385

$2,593.76$2,357.96 Ex. GST

Product Code: 3112385 SKU 3112385 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

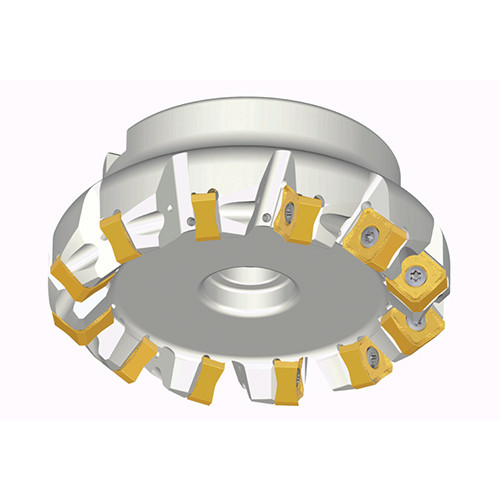

45° Face mills with 8 cutting edges of double-sided square inserts SN 13 for general milling

Additional information

Weight 8.3700 kg
Dimensions
barcode

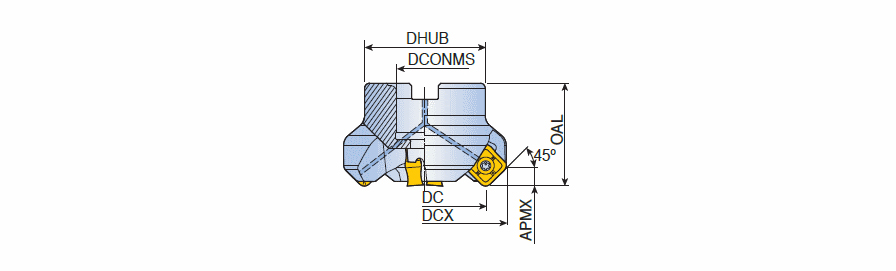

Additional Information

Cutting Diameter (DC): 214.8 mm
Master Insert Identification (MIID): SNGX 1306 ANTN-M
Cutting Item Count (CICT): 10
Body Material: Steel
Depth of Cut Maximum (APMX): 7 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 47.63 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
