Taegutec TFM45SN 20250-60R-13

Product Code: 3111651

$4,213.06$3,830.05 Ex. GST

Product Code: 3111651 SKU 3111651 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

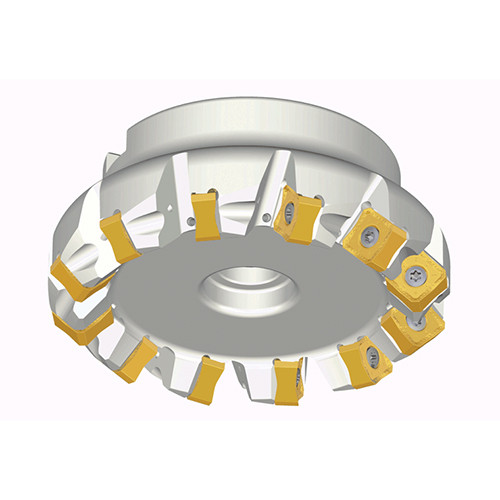

45° Face mills with 8 cutting edges of double-sided square inserts SN 13 for general milling

Additional information

Weight 13.8350 kg
Dimensions
barcode
Additional Information

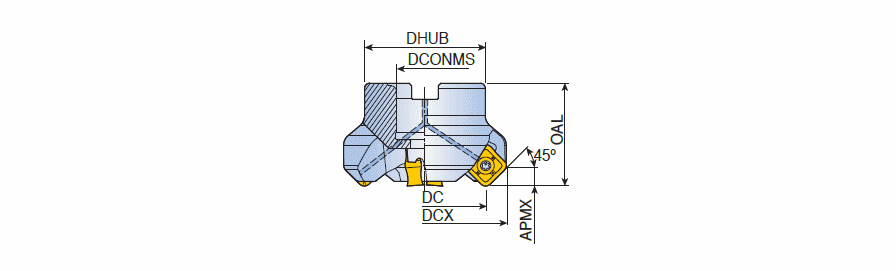

Cutting Diameter (DC): 264.8 mm
Master Insert Identification (MIID): SNGX 1306 ANTN-M
Cutting Item Count (CICT): 20
Body Material: Steel
Depth of Cut Maximum (APMX): 7 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 60 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
