Taegutec TFM45SN 480-27R-13B

Product Code: 3111653

$1,066.04$969.13 Ex. GST

Product Code: 3111653 SKU 3111653 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

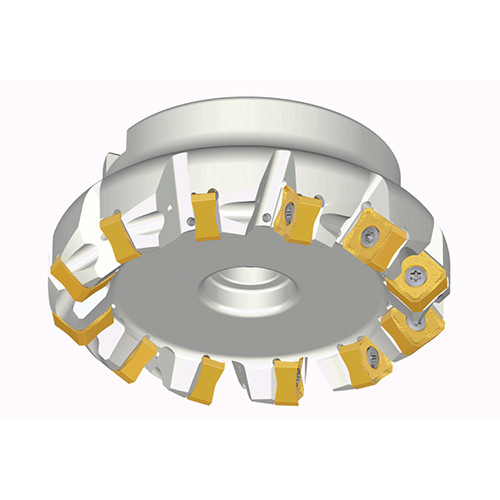

45° Face mills with 8 cutting edges of double-sided square inserts SN 13 for general milling

Additional information

Weight 1.9100 kg
Dimensions
barcode
Additional Information

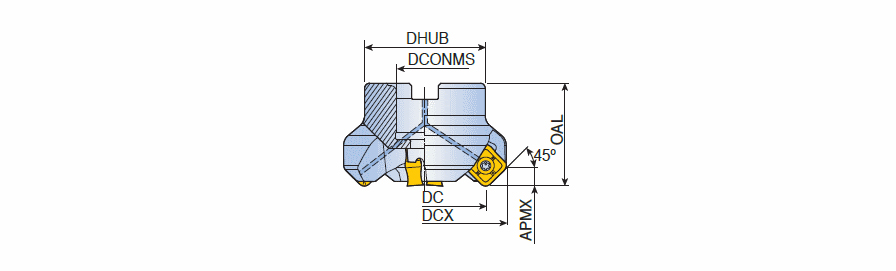

Cutting Diameter (DC): 94.8 mm
Master Insert Identification (MIID): SNGX 1306 ANTN-M
Cutting Item Count (CICT): 4
Body Material: Steel
Depth of Cut Maximum (APMX): 7 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M

Brand

Taegutec
