Taegutec TFM45SNW 22160-40R-16

Product Code: 3108552

$3,398.14$3,089.22 Ex. GST

Product Code: 3108552 SKU 3108552 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

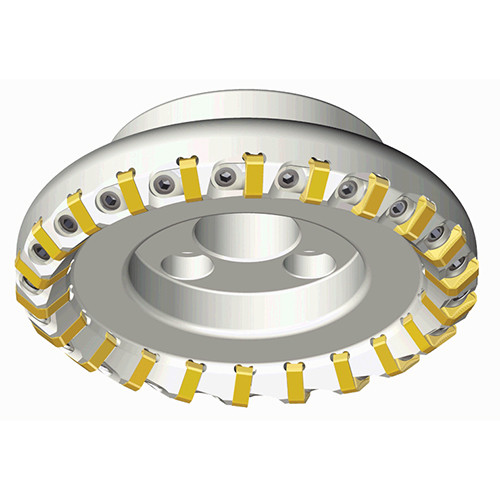

Heavy duty 45° face mills with wedge clamp type & double sided 8 cutting edges inserts of SN 16 for roughing of cast irons

Weight	5.6800 kg
Dimensions
barcode

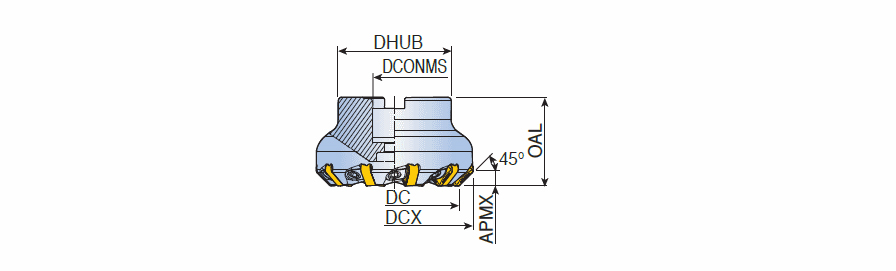

Additional Information	Cutting Diameter (DC): 178.2 mm Master Insert Identification (MIID): SNHX 1606 ANN-MM Cutting Item Count (CICT): 22 Body Material: Steel Depth of Cut Maximum (APMX): 8.8 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
