Taegutec TFM55AHNS 12125-40R-05

Product Code: 3105227

$1,951.49$1,774.08 Ex. GST

Product Code: 3105227 SKU 3105227 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

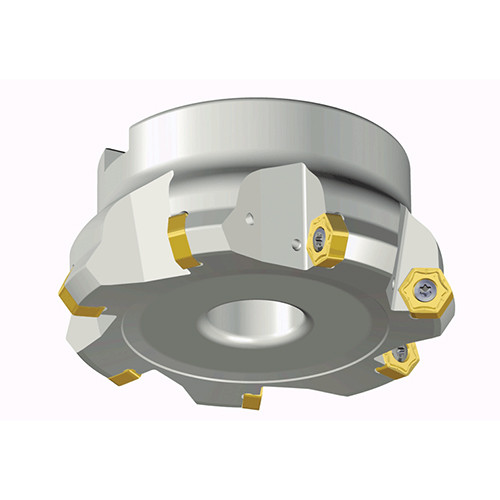

55 face mills with 12 cutting edges inserts of double sides & screw clamping type for general milling in max. ap 5.0 mm

Weight	4.1800 kg
Dimensions
barcode

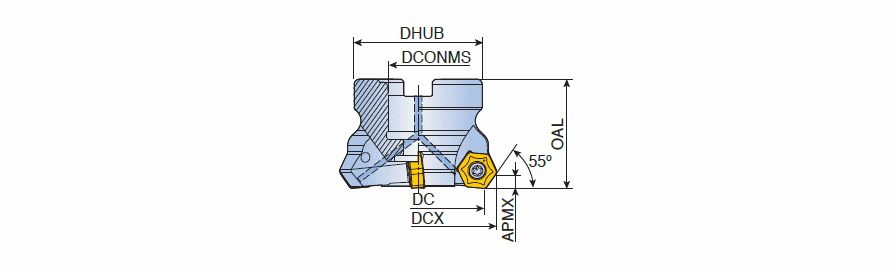

Additional Information	Cutting Diameter (DC): 133.16 mm Master Insert Identification (MIID): HNCX 050410-MM Cutting Item Count (CICT): 12 Body Material: Steel Depth of Cut Maximum (APMX): 5 mm Application:, Facing, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
