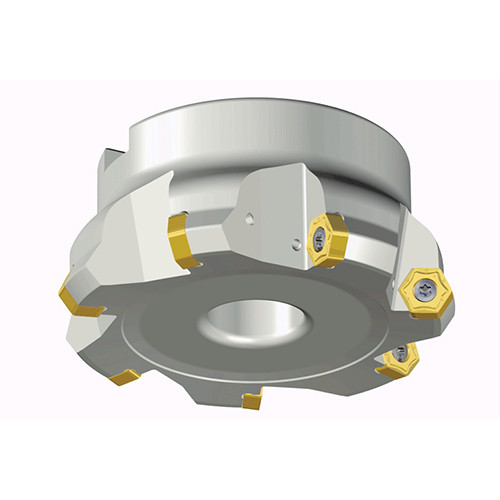

55 face mills with 12 cutting edges inserts of double sides & screw clamping type for general milling in max. ap 5.0 mm
Additional information
Weight
1.8650 kg
Dimensions
barcode
Additional Information

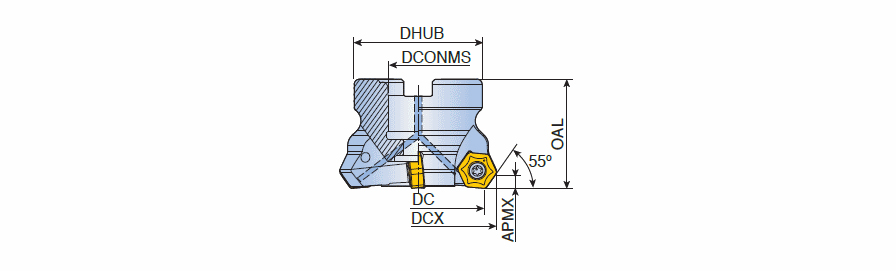

Cutting Diameter (DC): 88.16 mm
Master Insert Identification (MIID): HNCX 050410-MM
Cutting Item Count (CICT): 6
Body Material: Steel
Depth of Cut Maximum (APMX): 5 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M
