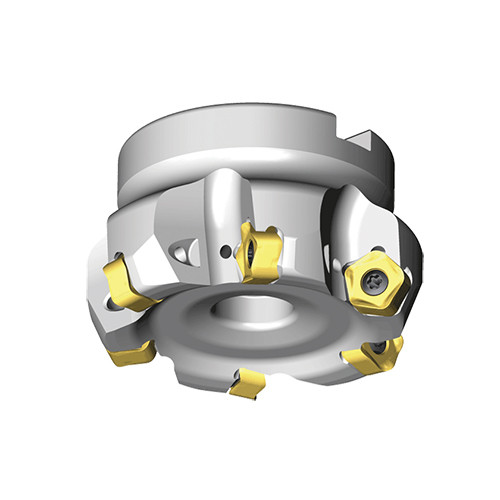

Taegutec TFM65PT 8100-32R-10

Product Code: 6320422

$1,669.35$1,517.59 Ex. GST

Product Code: 6320422 SKU 6320422 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

65° Face mills of economical 10 cutting edges inserts with high positive rake angles for general milling in maximum depth of cut ap 6.5 mm

Weight	2.4950 kg
Dimensions
barcode

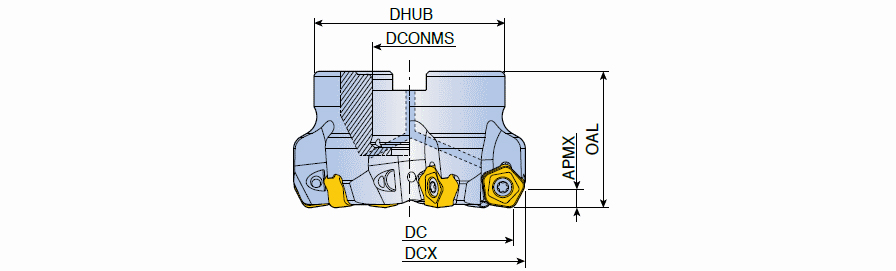

Additional Information	Cutting Diameter (DC/DCX): 107.4 mm Hub Diameter (DHUB): 85 mm Cutting Diameter (DC): 100 mm Master Insert Identification (MIID): PTKU 1006R-M Cutting Diameter Maximum (DCX): 107.4 mm Body Material: Steel Cutting Item Count (CICT): 8 Application:, Facing, Depth of Cut Maximum (APMX): 6.5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Unit: M Overall Length (OAL): 6.5 mm
