Taegutec TFM75AP 580-27R-17

Product Code: 3102792

$1,141.55$1,037.77 Ex. GST

Product Code: 3102792 SKU 3102792 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

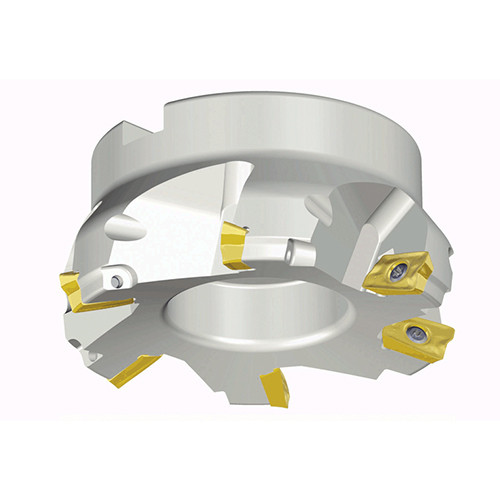

75° Face mills using other corners of APKT 17 inserts

Additional information

Weight 1.5450 kg
Dimensions
barcode
Additional Information

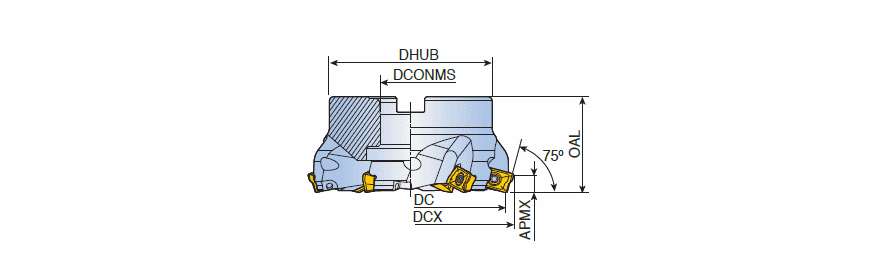

Cutting Diameter (DC): 87.82 mm
Master Insert Identification (MIID): APKT 1705 PER-EM
Cutting Item Count (CICT): 5
Body Material: Steel
Depth of Cut Maximum (APMX): 3.9 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M

Brand

Taegutec
