Taegutec TFM75AP 7125-38.1R-17

Product Code: 3105577

$1,627.27$1,479.34 Ex. GST

Product Code: 3105577 SKU 3105577 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

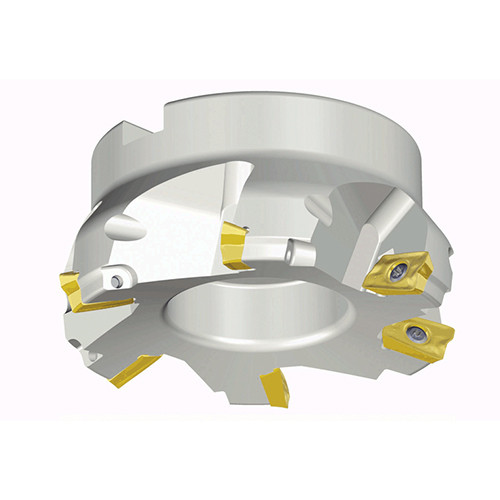

75° Face mills using other corners of APKT 17 inserts

Additional information

Weight 3.4600 kg
Dimensions
barcode

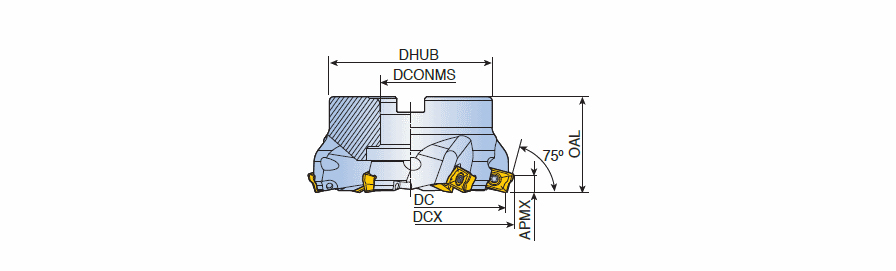

Additional Information

Cutting Diameter (DC): 132.82 mm
Master Insert Identification (MIID): APKT 1705 PER-EM
Cutting Item Count (CICT): 7
Body Material: Steel
Depth of Cut Maximum (APMX): 3.9 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 38.1 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
