Taegutec TFM88SN 12160-40R-13

Product Code: 3107359

$2,442.65$2,220.59 Ex. GST

Product Code: 3107359 SKU 3107359 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

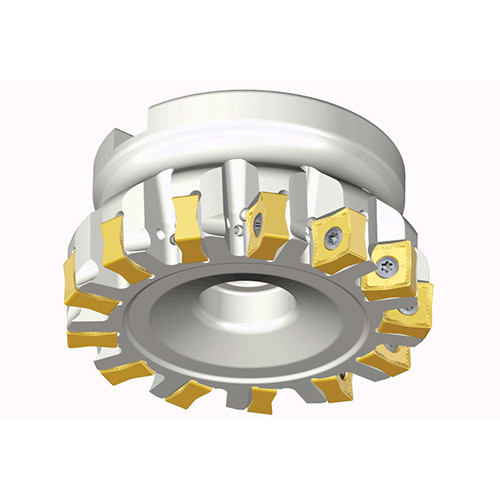

Taegutec TFM88SN 12160-40R-13

Taegutec TFM88SN 12160-40R-13 - Image 2

Taegutec TFM88SN 12160-40R-13 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

88° Face mills with 8 cutting edges of double-sided square inserts SN 13 for milling near to shoulders

Additional information

Weight	4.8600 kg
Dimensions
barcode

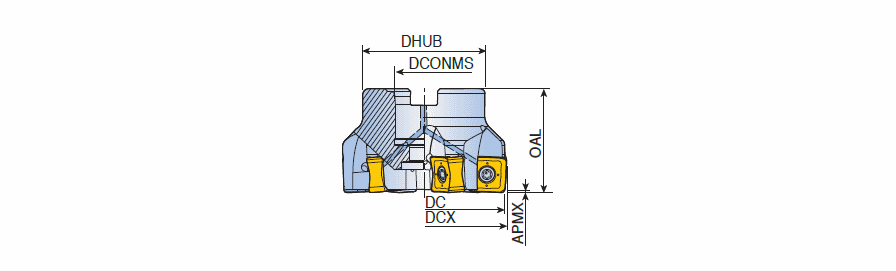

Additional Information	Cutting Diameter (DC): 161.1 mm Master Insert Identification (MIID): SNGX 1306 ZN-M Cutting Item Count (CICT): 12 Body Material: Steel Depth of Cut Maximum (APMX): 12 mm Application:, Facing, Shouldering, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M

Brand

Taegutec
