Taegutec TFM90AP 7125-38.1R-17-B

Product Code: 3108269

$1,543.15$1,402.86 Ex. GST

Product Code: 3108269 SKU 3108269 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

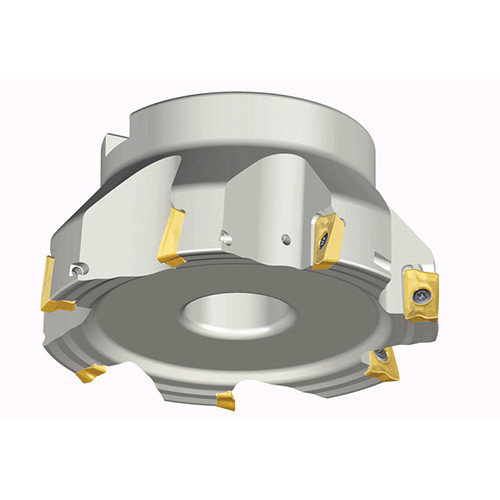

90° Face mills with high positive two helical cutting edges inserts of AP.. 17

Additional information

Weight 3.2250 kg
Dimensions
barcode
Additional Information

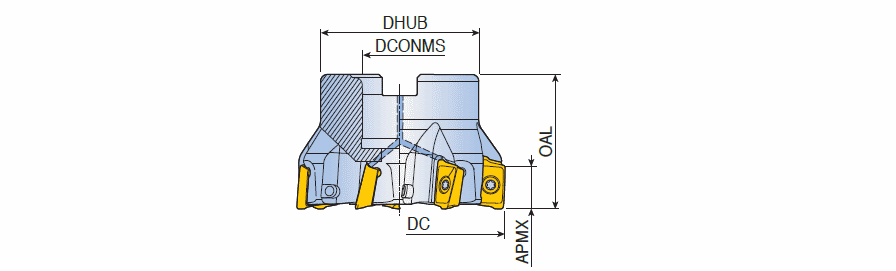

Cutting Diameter (DC): 125 mm
Master Insert Identification (MIID): APKT 1705 PER-EM
Cutting Item Count (CICT): 7
Body Material: Steel
Depth of Cut Maximum (APMX): 16.1 mm
Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 38.1 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
