Taegutec TFM90AP 763-22R-12

Product Code: 3104583

$978.77$889.79 Ex. GST

Product Code: 3104583 SKU 3104583 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

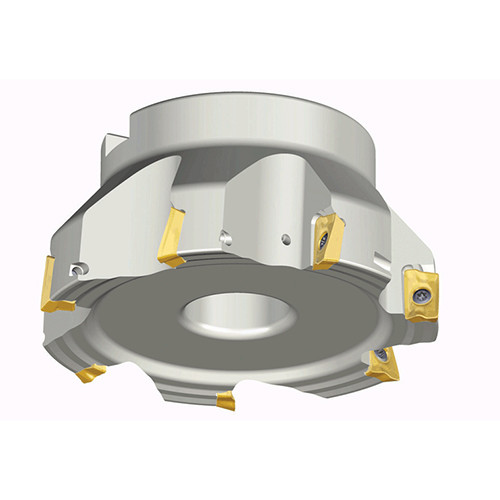

90° Face mills with high positive two helical cutting edges inserts of APKT 12

Weight	1.0450 kg
Dimensions
barcode

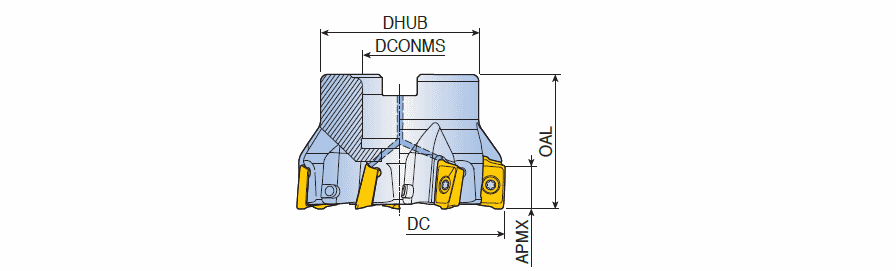

Additional Information	Cutting Diameter (DC): 63 mm Master Insert Identification (MIID): APKT 1204 PER-EM Cutting Item Count (CICT): 7 Body Material: Steel Depth of Cut Maximum (APMX): 12 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 22 mm Measurement Type: Metric Overall Length (OAL): 40 mm Unit: M
