Taegutec TFM90AP 8100-32R-17

Product Code: 3101276

$1,445.65$1,314.23 Ex. GST

Product Code: 3101276 SKU 3101276 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

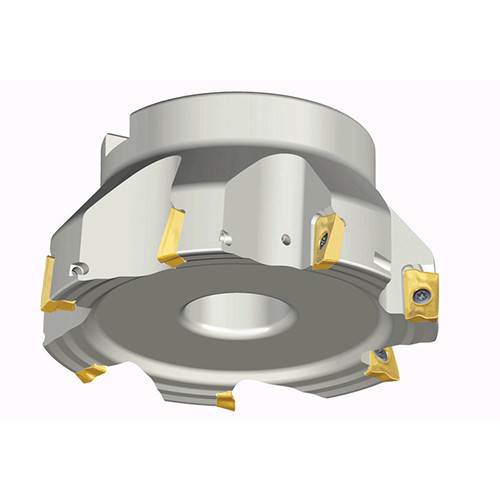

90° Face mills with high positive two helical cutting edges inserts of AP.. 17

Weight	2.3150 kg
Dimensions
barcode

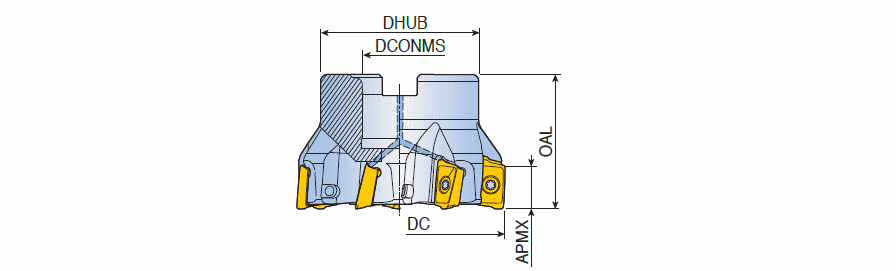

Additional Information	Cutting Diameter (DC): 100 mm Master Insert Identification (MIID): APKT 1705 PER-EM Cutting Item Count (CICT): 8 Body Material: Steel Depth of Cut Maximum (APMX): 16.1 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 32 mm Measurement Type: Metric Overall Length (OAL): 50 mm Unit: M
