Taegutec TFM90AV-540-16R-10

Product Code: 6234539

$706.75$642.50 Ex. GST

Product Code: 6234539 SKU 6234539 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

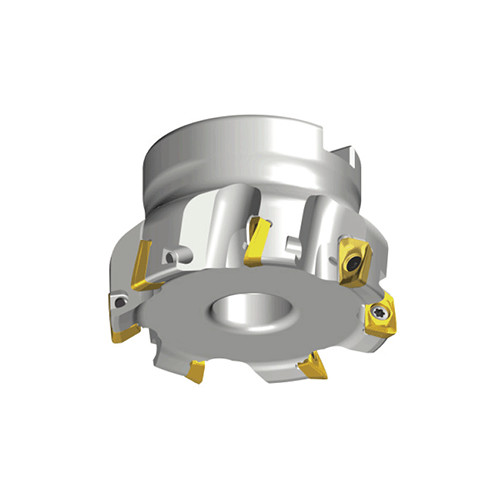

Taegutec TFM90AV-540-16R-10

Taegutec TFM90AV-540-16R-10 - Image 2

Taegutec TFM90AV-540-16R-10 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with AVK(C)T inserts for shoulder milling

Additional information

Weight	0.3550 kg
Dimensions
barcode

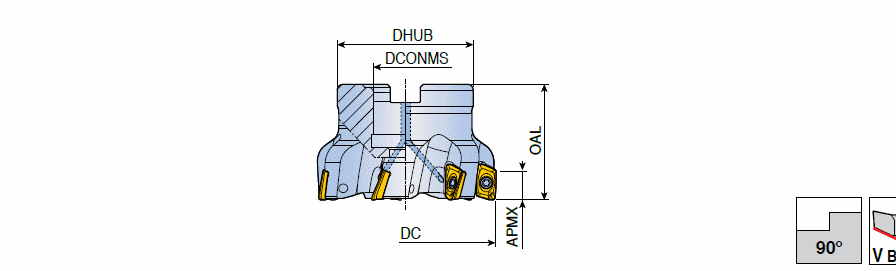

Additional Information	Cutting Diameter (DC/DCX): 40 mm Hub Diameter (DHUB): 38 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): AVKT 1004 PER-M Cutting Item Count (CICT): 5 Body Material: Steel Depth of Cut Maximum (APMX): 10 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 16 mm Measurement Type: Metric Overall Length (OAL): 10 mm Unit: M

Brand

Taegutec
