Taegutec TFM90AX 832-16R-06

Product Code: 3104035

$778.86$708.05 Ex. GST

Product Code: 3104035 SKU 3104035 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

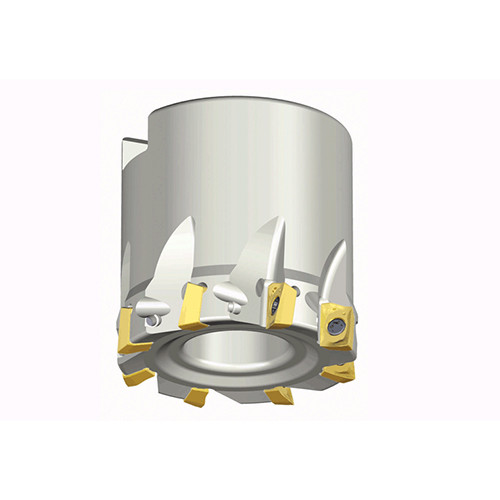

90° Face mills with high positive two helical cutting edges inserts of AXMT 06

Additional information

Weight 0.7200 kg
Dimensions
barcode
Additional Information

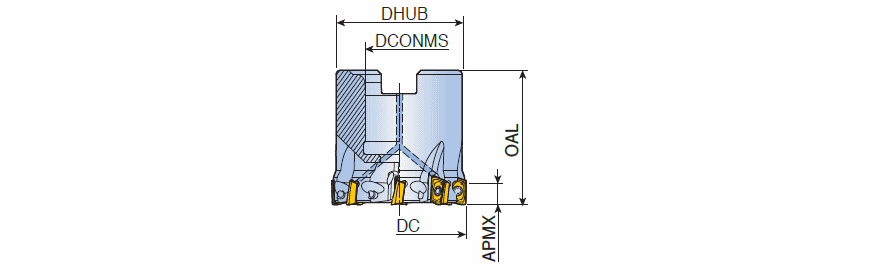

Cutting Diameter (DC): 32 mm
Master Insert Identification (MIID): AXMT 0602 PER-EM
Cutting Item Count (CICT): 8
Body Material: Steel
Depth of Cut Maximum (APMX): 5.5 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 16 mm
Measurement Type: Metric
Overall Length (OAL): 32 mm
Unit: M

Brand

Taegutec
