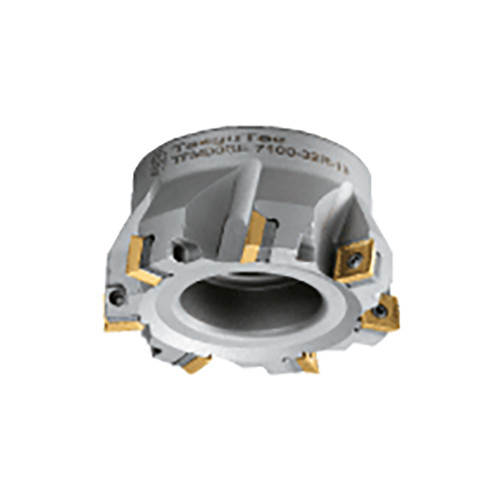

Taegutec TFM90SE 12160-40R-13

Product Code: 3102676

$2,303.91$2,094.46 Ex. GST

Product Code: 3102676 SKU 3102676 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with positive 4 cutting edges of SEMT/HT 13 inserts

Additional information

Weight 5.0200 kg
Dimensions
barcode
Additional Information

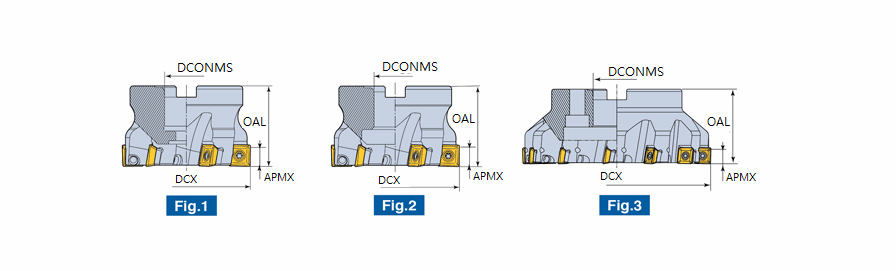

Cutting Diameter (DC): 160 mm
Master Insert Identification (MIID): SEMT 1304 PETR-M
Cutting Item Count (CICT): 12
Body Material: Steel
Depth of Cut Maximum (APMX): 11 mm
Application:, Facing, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 40 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M

Brand

Taegutec
