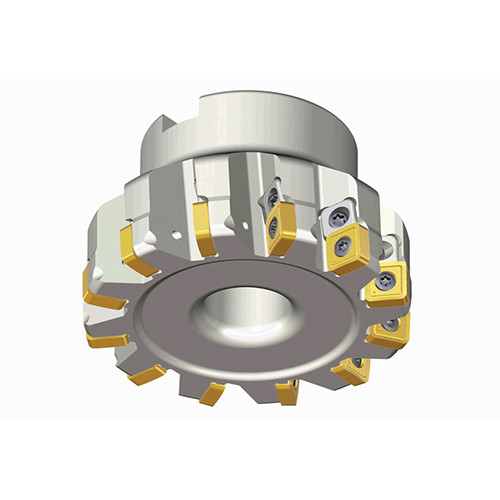

90° Face mills with adjustable pockets and precision ground wiper SN 12 inserts for finishing of steels and cast irons
Additional information
Weight
7.3350 kg
Dimensions
barcode
Additional Information
Cutting Diameter (DC): 200 mm
Master Insert Identification (MIID): SNEX 1204-W
Cutting Item Count (CICT): 24
Body Material: Steel
Depth of Cut Maximum (APMX): 1 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 60 mm
Measurement Type: Metric
Overall Length (OAL): 63 mm
Unit: M
