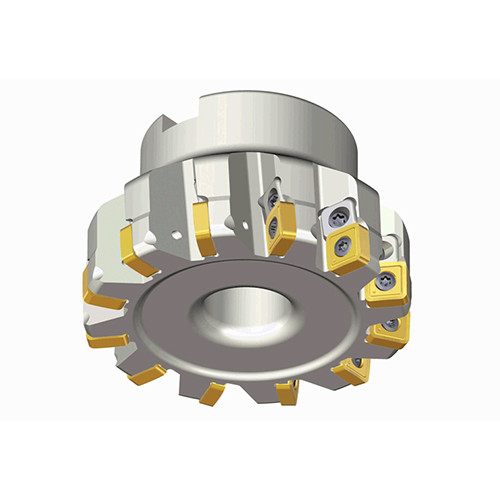

90° Face mills with adjustable pockets and precision ground wiper SN 12 inserts for finishing of steels and cast irons
Additional information
Weight
1.0900 kg
Dimensions
barcode
Additional Information

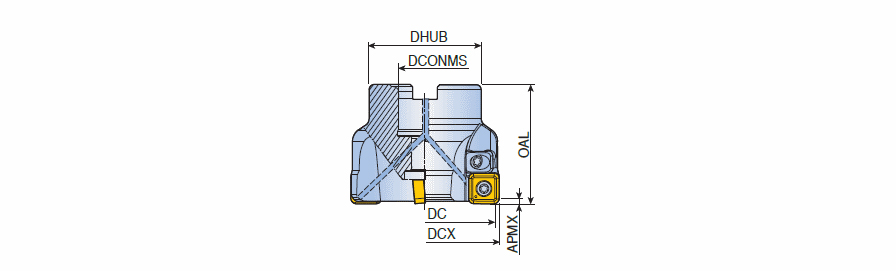

Cutting Diameter (DC): 80 mm
Master Insert Identification (MIID): SNEX 1204-W
Cutting Item Count (CICT): 6
Body Material: Steel
Depth of Cut Maximum (APMX): 1 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 27 mm
Measurement Type: Metric
Overall Length (OAL): 50 mm
Unit: M
