Taegutec TFM90XEV 450-22R-16

Product Code: 6116407

$926.27$842.06 Ex. GST

Product Code: 6116407 SKU 6116407 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

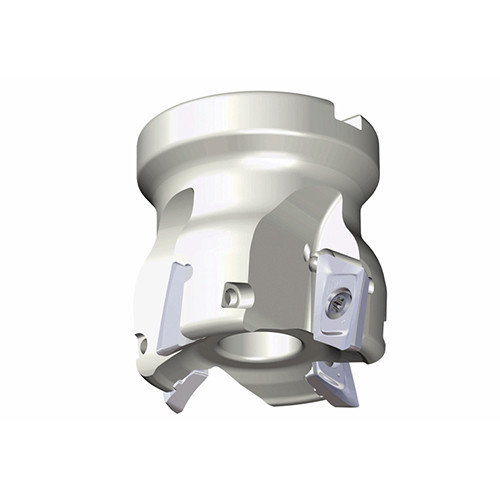

90° Face mills with very high positive rake angle & two helical cutting edges inserts of XEVT 16/22 for high speed aluminum machining

Weight	0.9100 kg
Dimensions
barcode

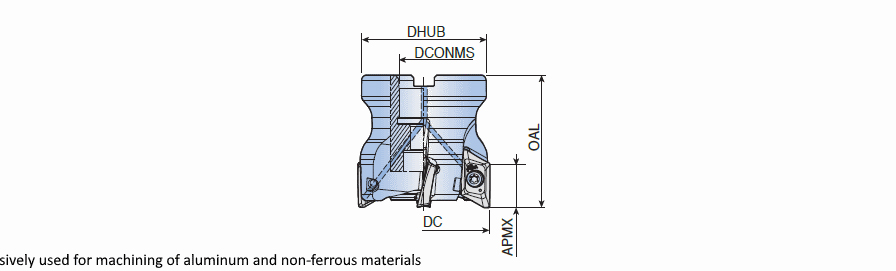

Additional Information	Cutting Diameter (DC): 50 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Item Count (CICT): 4 Body Material: Steel Depth of Cut Maximum (APMX): 16 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 22 mm Measurement Type: Metric Overall Length (OAL): 50 mm Unit: M
