Taegutec TFM90XEV 580-27R-16

Product Code: 6128421

$1,204.14$1,094.67 Ex. GST

Product Code: 6128421 SKU 6128421 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

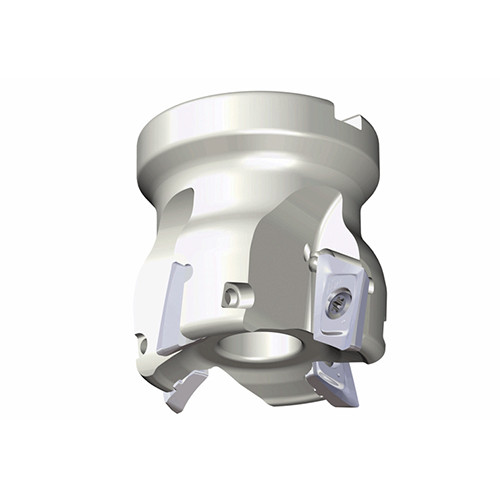

Taegutec TFM90XEV 580-27R-16

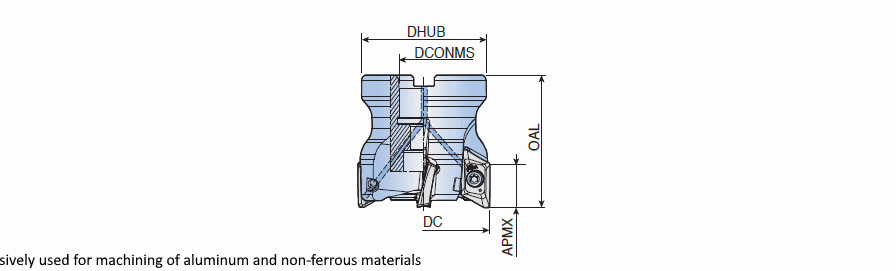

Taegutec TFM90XEV 580-27R-16 - Image 2

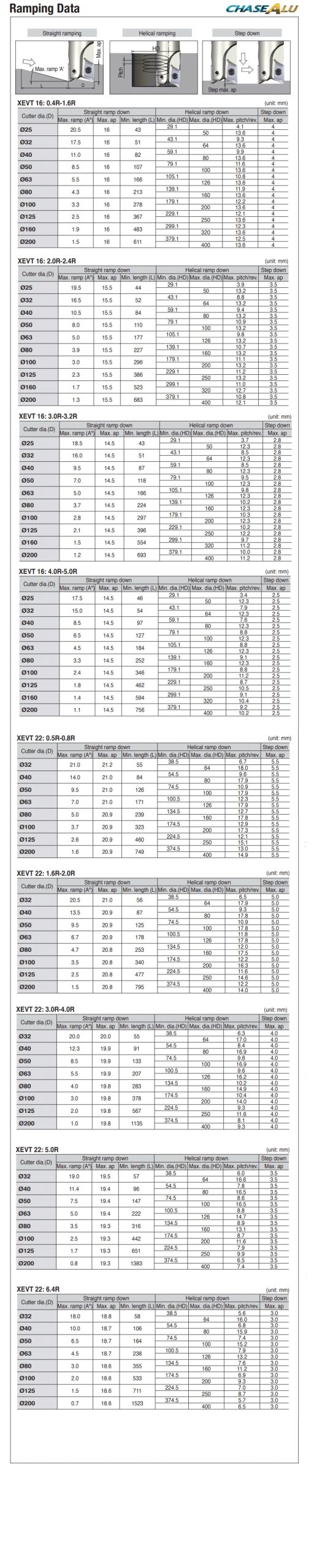

Taegutec TFM90XEV 580-27R-16 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Face mills with very high positive rake angle & two helical cutting edges inserts of XEVT 16/22 for high speed aluminum machining

Additional information

Weight	1.4350 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 80 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Item Count (CICT): 5 Body Material: Steel Depth of Cut Maximum (APMX): 16 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 27 mm Measurement Type: Metric Overall Length (OAL): 50 mm Unit: M

Brand

Taegutec
