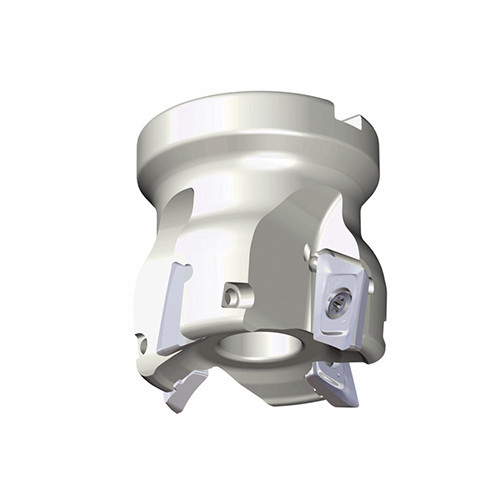

Taegutec TFM90XEV 6100-32R-16

Product Code: 6128422

$1,530.87$1,391.70 Ex. GST

Product Code: 6128422 SKU 6128422 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

90° Face mills with very high positive rake angle & two helical cutting edges inserts of XEVT 16/22 for high speed aluminum machining

Weight	2.1700 kg
Dimensions
barcode

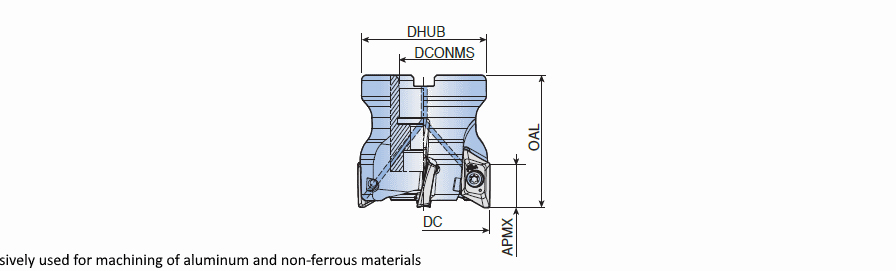

Additional Information	Cutting Diameter (DC): 100 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Item Count (CICT): 6 Body Material: Steel Depth of Cut Maximum (APMX): 16 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 32 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
