Taegutec TFM90XEV 7125-40R-22

Product Code: 6130754

$1,831.31$1,664.83 Ex. GST

Product Code: 6130754 SKU 6130754 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

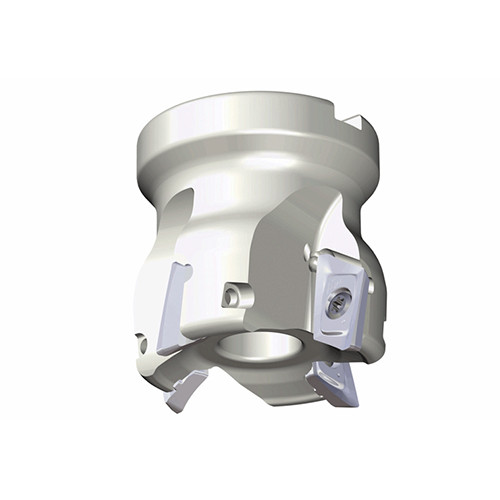

90° Face mills with very high positive rake angle & two helical cutting edges inserts of XEVT 16/22 for high speed aluminum machining

Weight	3.5400 kg
Dimensions
barcode

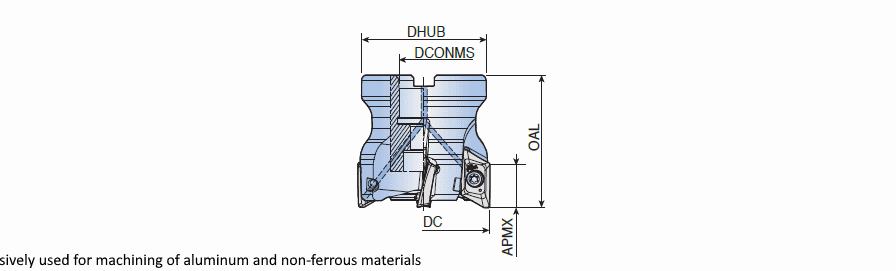

Additional Information	Cutting Diameter (DC): 125 mm Master Insert Identification (MIID): XEVT 220608R-AL Cutting Item Count (CICT): 7 Body Material: Steel Depth of Cut Maximum (APMX): 21 mm Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
