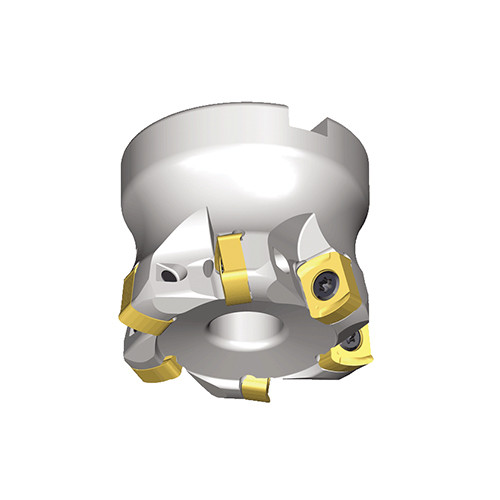

High feed mills with BLMP 11 inserts of 4 cutting edges in maximum depth of cut ap 2.0 mm
Additional information
Weight
0.7050 kg
Dimensions
barcode
Additional Information

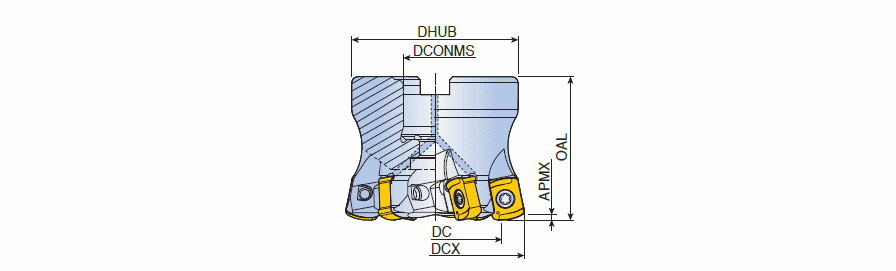

Cutting Diameter (DC/DCX): 40 mm
Connection Diameter Machine Side (DCONMS): 16 mm
Cutting Diameter (DC): 24.4 mm
Master Insert Identification (MIID): BLMP 1105R-M
Cutting Item Count (CICT): 4
Measurement Type: Metric
Depth of Cut Maximum (APMX): 2 mm
Body Material: Steel
Overall Length (OAL): 40 mm
Cutting Diameter Maximum (DCX): 40 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
