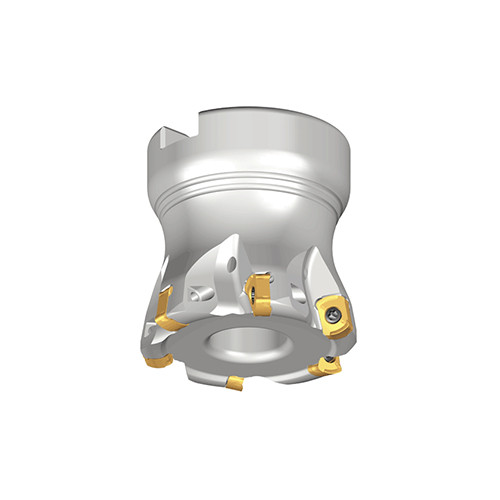

Face mills with 4 cutting edges of V-shaped double-sided BLMV inserts for high feed milling
Additional information
Weight
0.7400 kg
Dimensions
barcode
Additional Information

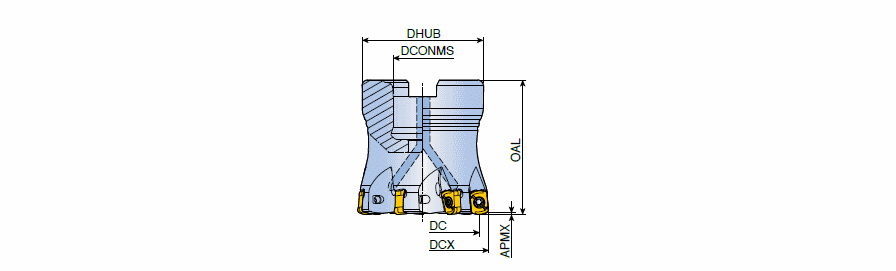

Cutting Diameter (DC/DCX): 63 mm
Hub Diameter (DHUB): 48 mm
Cutting Diameter (DC): 55 mm
Master Insert Identification (MIID): BLMV 0603R-M
Cutting Diameter Maximum (DCX): 63 mm
Body Material: Steel
Cutting Item Count (CICT): 8
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Step down machining, Depth of Cut Maximum (APMX): 1 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 22 mm
Unit: M
Overall Length (OAL): 1 mm
