Taegutec TFMBN 550-22R-12

Product Code: 6322984

$1,139.73$1,036.12 Ex. GST

Product Code: 6322984 SKU 6322984 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

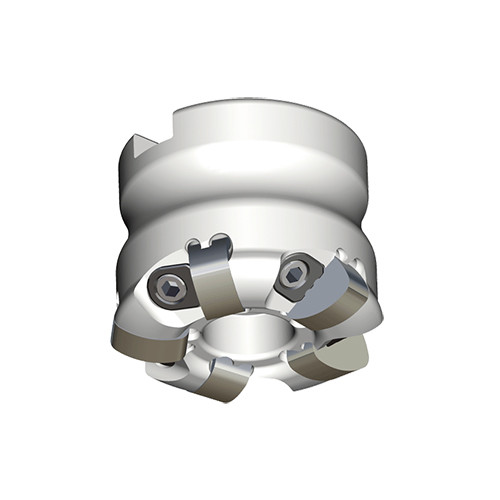

Taegutec TFMBN 550-22R-12

Taegutec TFMBN 550-22R-12 - Image 2

Taegutec TFMBN 550-22R-12 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High Feed mills with negative Ceramic inserts of 6 cutting edges & air holes for high speed machining of super alloys in wedge clamping type

Additional information

Weight	0.8800 kg
Dimensions
barcode

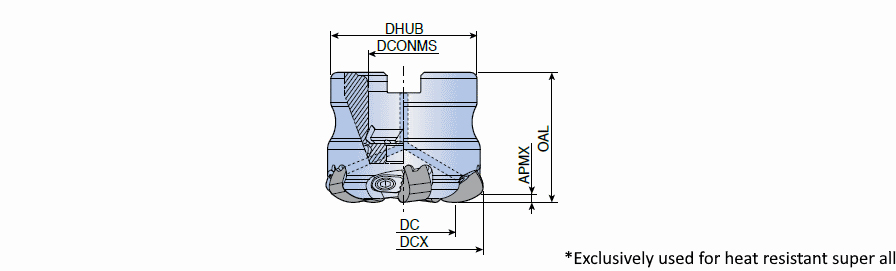

Additional Information	Cutting Diameter (DC/DCX): 50 mm Hub Diameter (DHUB): 45 mm Cutting Diameter (DC): 32.8 mm Master Insert Identification (MIID): BNGX 1207-E04 Cutting Diameter Maximum (DCX): 50 mm Body Material: Steel Cutting Item Count (CICT): 5 Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Depth of Cut Maximum (APMX): 2.5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 22 mm Unit: M Overall Length (OAL): 2.5 mm

Brand

Taegutec
