Taegutec TFMBN 663-22R-12

Product Code: 6336919

$1,184.66$1,076.96 Ex. GST

Product Code: 6336919 SKU 6336919 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

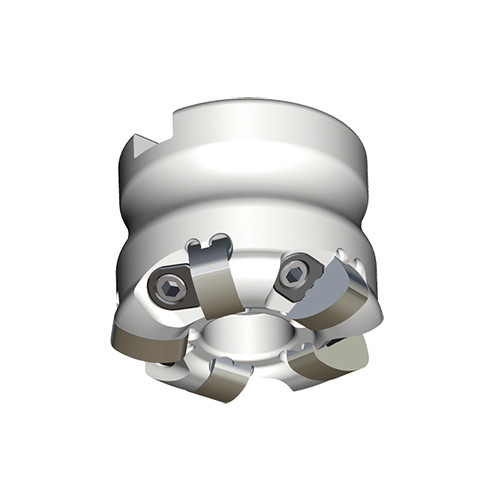

High Feed mills with negative Ceramic inserts of 6 cutting edges & air holes for high speed machining of super alloys in wedge clamping type

Weight	0.6250 kg
Dimensions
barcode

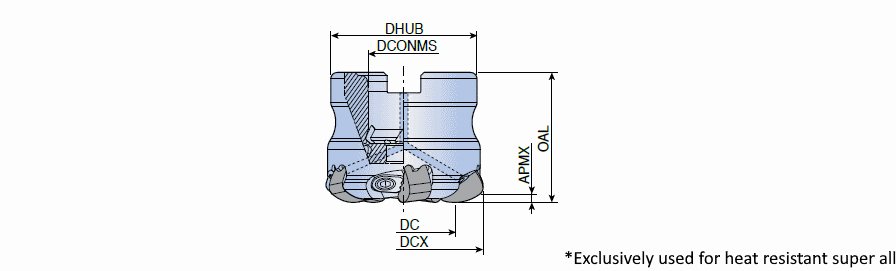

Additional Information	Cutting Diameter (DC/DCX): 63 mm Hub Diameter (DHUB): 47 mm Cutting Diameter (DC): 45.7 mm Master Insert Identification (MIID): BNGX 1207-E04 Cutting Diameter Maximum (DCX): 63 mm Body Material: Steel Cutting Item Count (CICT): 6 Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Depth of Cut Maximum (APMX): 2.5 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 22 mm Unit: M Overall Length (OAL): 2.5 mm
